WINDOW REVEAL SUPPORT

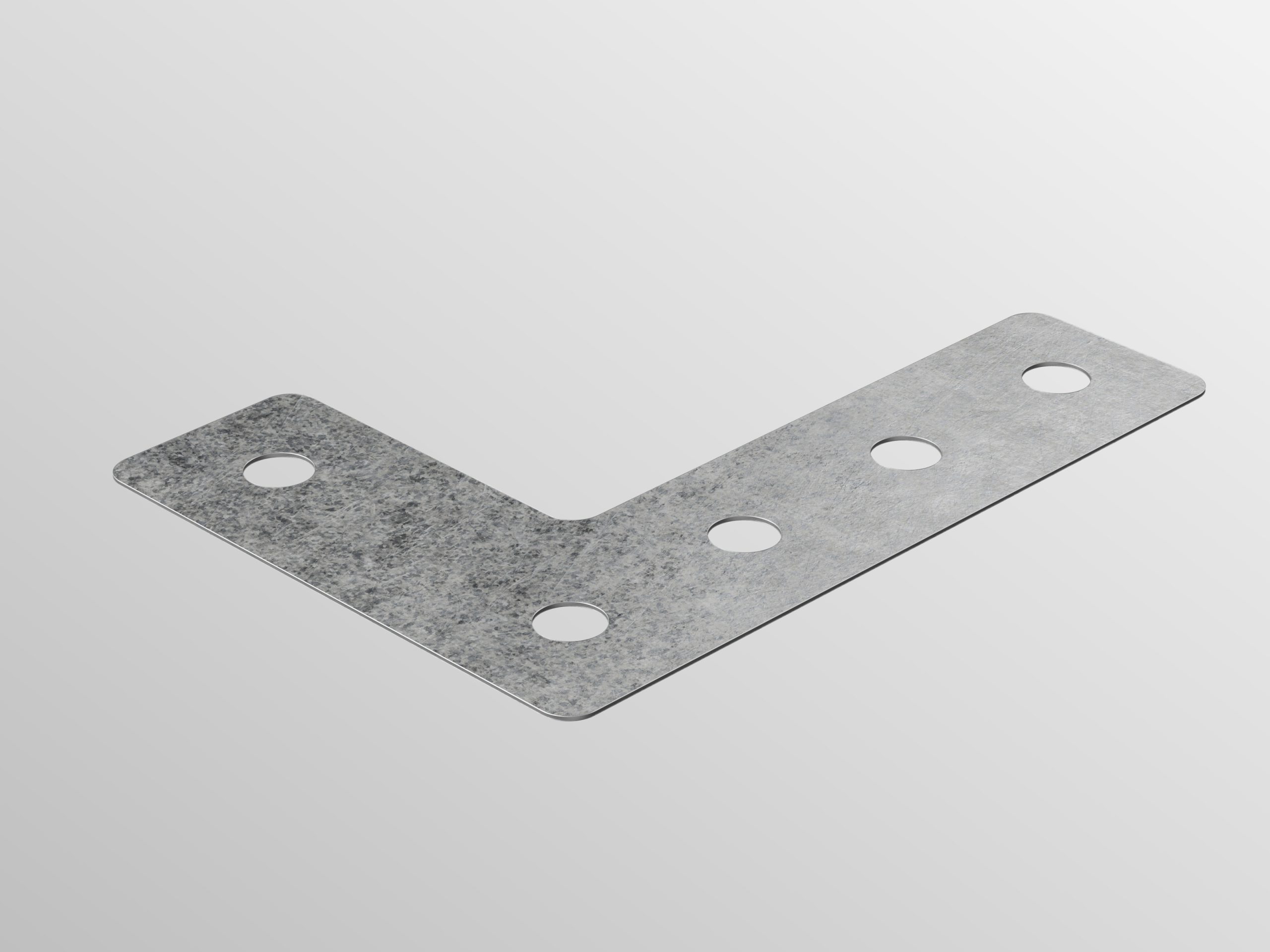

Supports the first few bricks in a full brick (215mm deep) window reveal during construction. Designed for the long leg of the plate to be built into the external leaf bed joint, providing a stable bearing for the reveal brick.

Downloads

Datasheet
Code Size Units
WINDOW 250mm x 184mm 50 Box

*Other sizes are available to specification

  • Design – Supports the first few bricks in a full brick (215mm deep) window reveal during construction. Designed for the long leg of the plate to be built into the external leaf bed joint, providing a stable bearing for the reveal brick.
  • Material – Manufactured from grade 304 stainless steel.
  • Behaviour in relation to fire – Non combustible (as defined in the national Building Regulations).
  • Durability – Excellent corrosion resistance and a service life of not less than 60 years.
  • Specification – Available for specification on the NBS Source platform.
