VX Engineered Restraint Straps

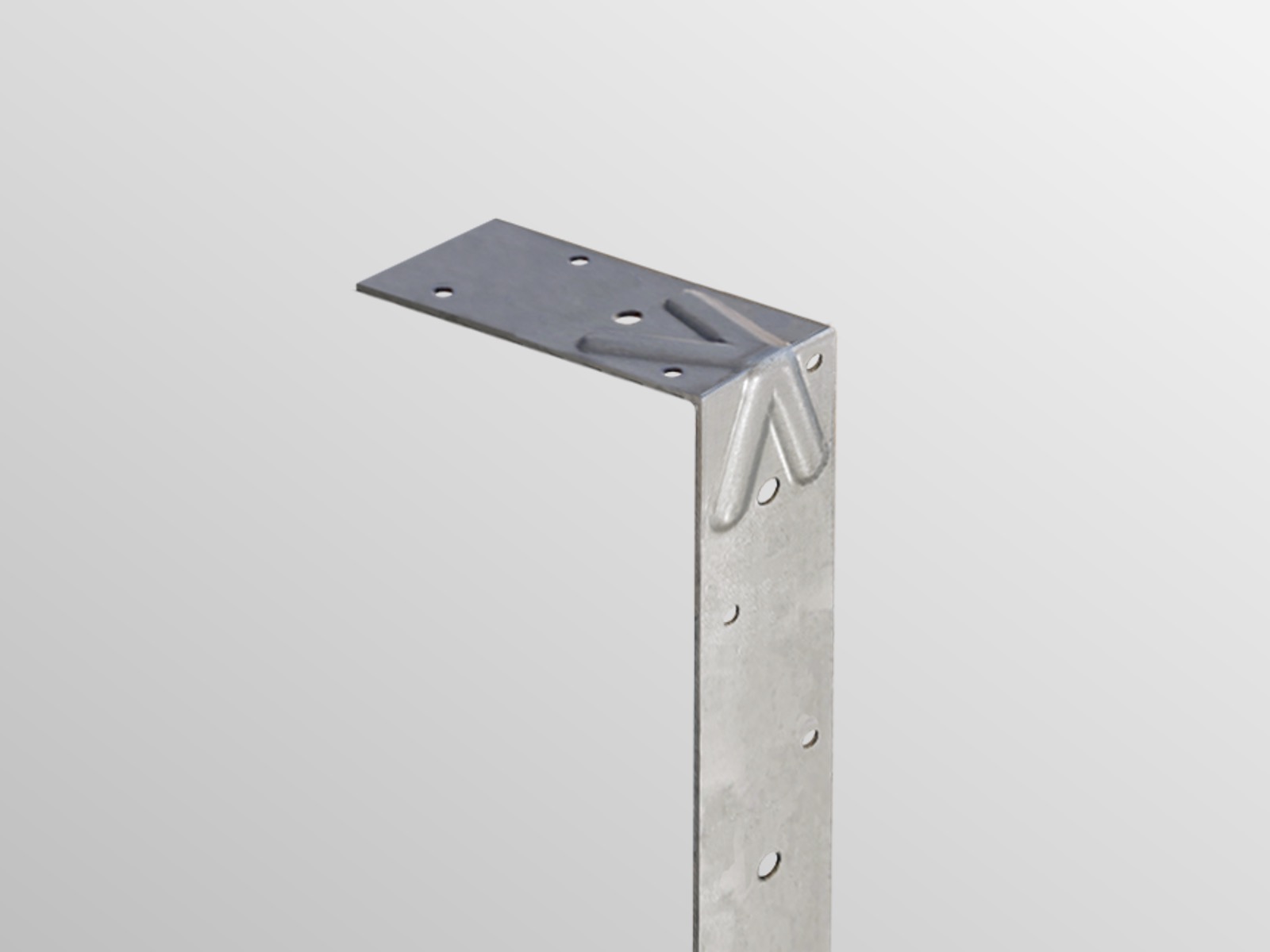

VX vertical restraint straps are engineered to provide the performance of our traditional ‘V’ strap. Manufactured from galvanised mild steel to BS EN 10346:2015. The VX restraint strap is a thin profile (1.2mm thick) strap suitable for vertical restraint applications such as tying wall plates to masonry walls.

Code Size Units
VX/600/B100​ 500mm + 100mm 20 Bundle
VX/800/B100​ 700mm + 100mm 20 Bundle
VX/1000/B100​ 900mm + 100mm 20 Bundle
VX/1200/B100​ 1100mm + 100mm 20 Bundle
  • Features:
    • Quick and easy to install
    • Direct replacement for bent V restraint strap
    • Lighter and easier to handle than traditional straps

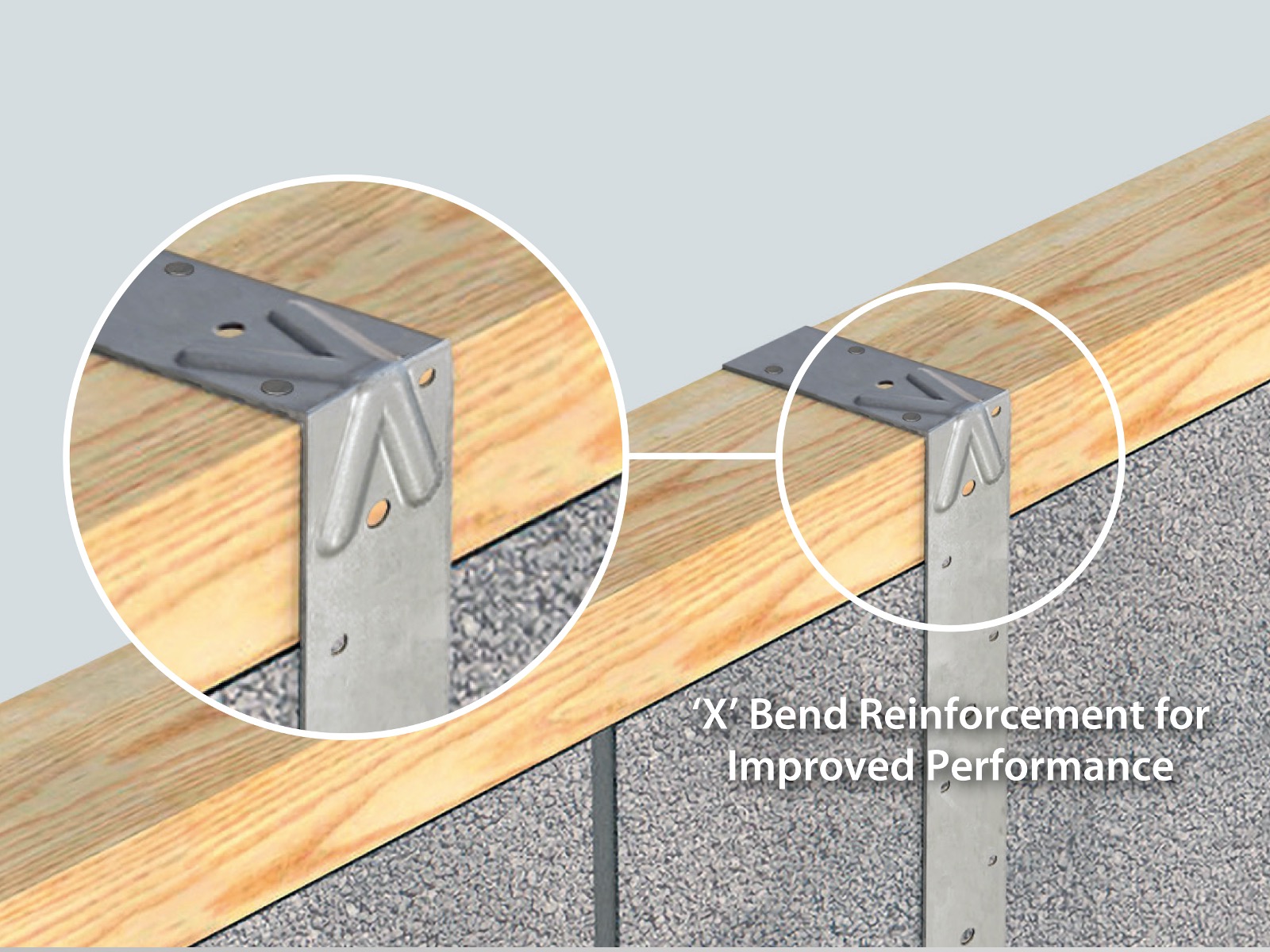

    • Unique ‘X’ reinforcement in the bend for increased performance
    • Characteristic Capacity 4.0 kN
    • Bent 90° at 100mm
  • Fixings:
    • Timber recommended fixing 3no. 3.75 x 30mm sherardized square twist nail
    • Masonry fixings are the responsibility of the Building Designer
    • Lowest fixing shall be within 150mm of the bottom of the strap
  • Approvals:
    • Meets the requirements of BS EN 845-1
    • UKCA and CE Marked
