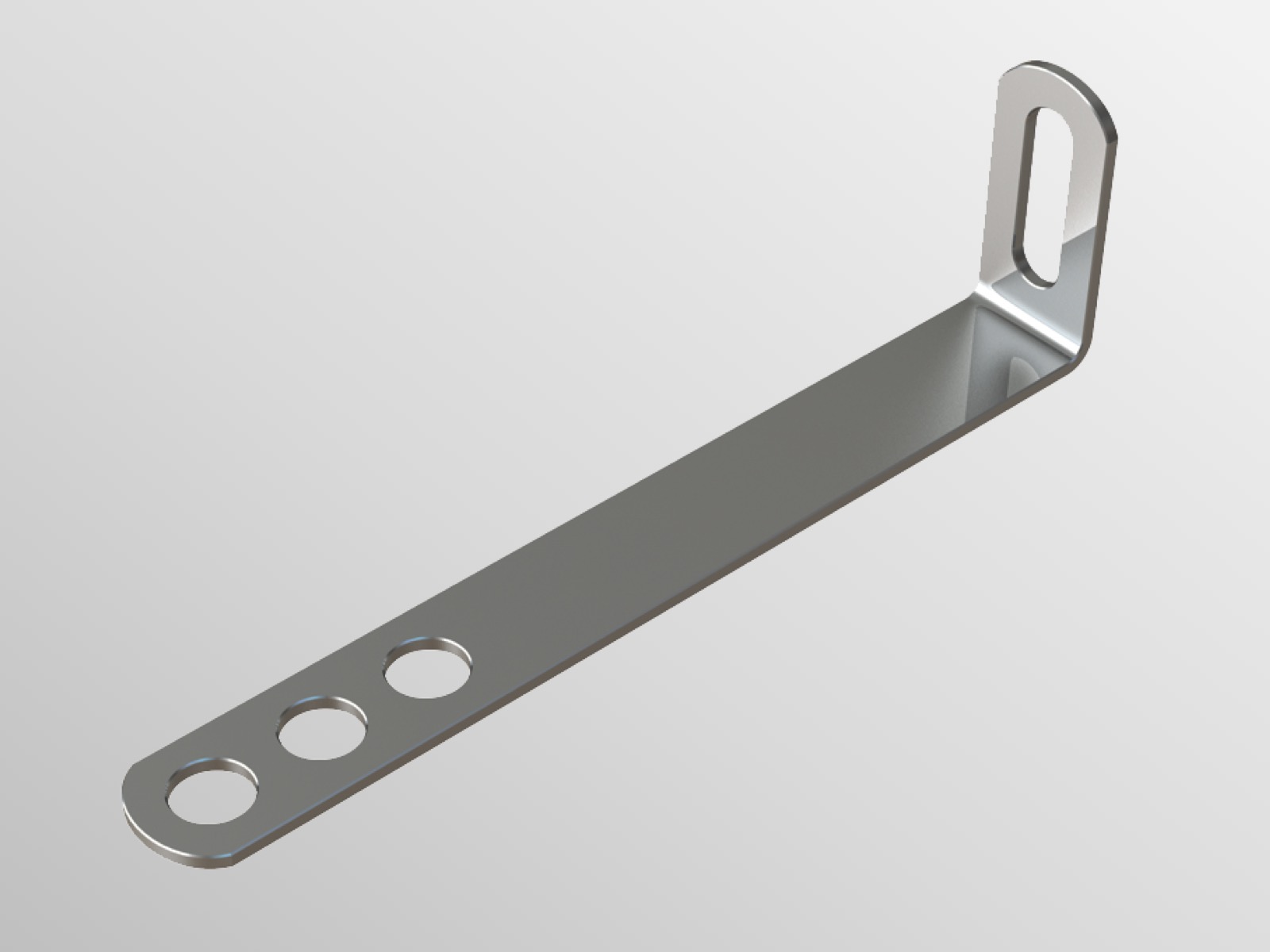

As VE7, but supplied with a slot in upstand to allow various fixings.
Downloads
Datasheet
Technical Drawning
DOP
Code
Size
Units
DOP
VS7-125-STST
125mm Projection
250 Box
VS7-150-STST
150mm Projection
250 Box
VS7-175-STST
175mm Projection
250 Box
VS7-200-STST
200mm Projection
250 Box
VS7-225-STST
225mm Projection
200 Box
VS7-250-STST
250mm Projection
200 Box
VS7-275-STST
275mm Projection
200 Box
VS7-300-STST
300mm Projection
200 Box
VS7-075-STST
75mm Projection
250 Box
VS7-100-STST
100mm Projection
250 Box

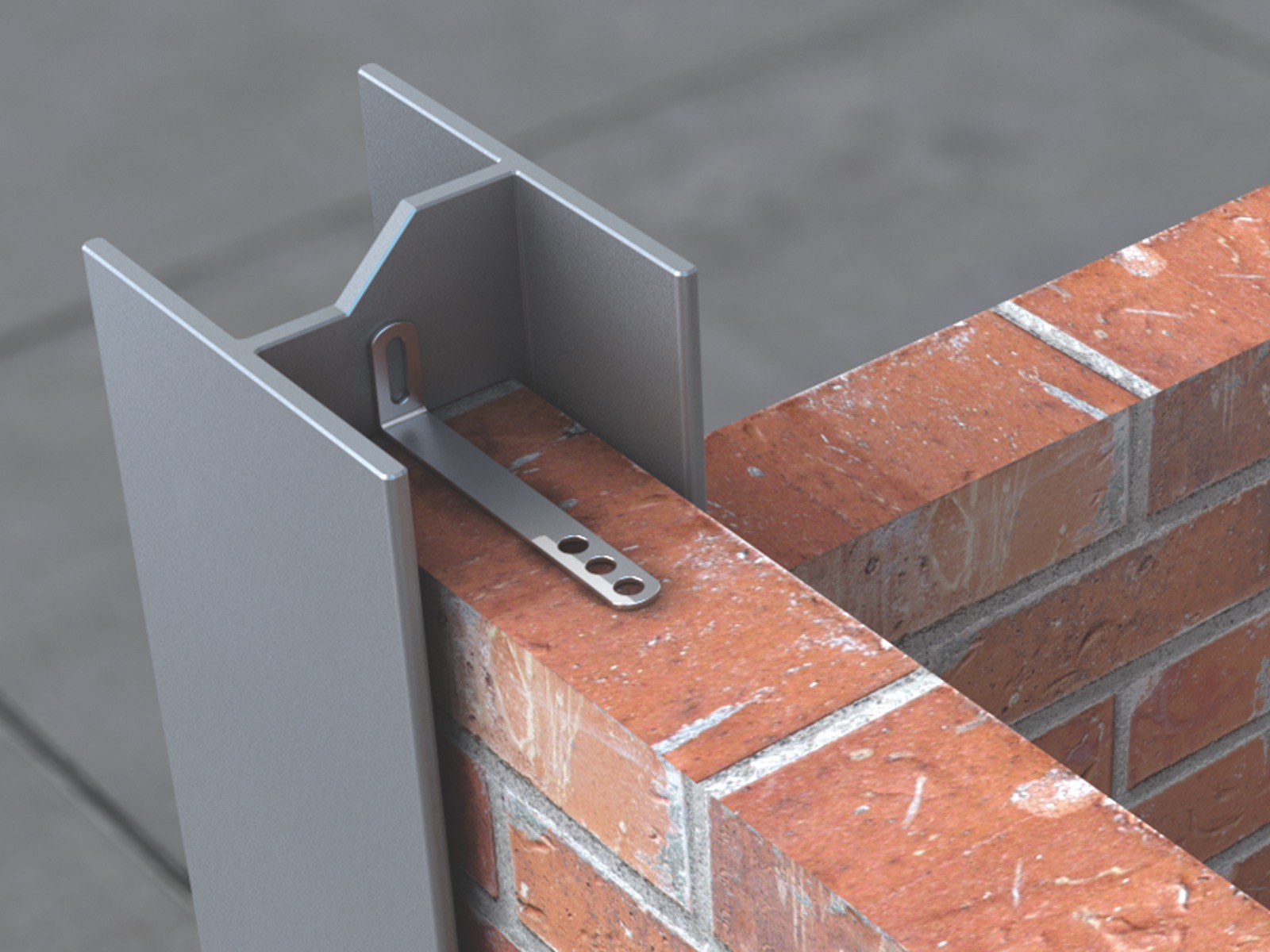

Design – Frame cramp for restraining masonry to new or existing structures and for building in non-structural elements (frames etc) supplied with a slot in upstand to allow various fixings.
Material – Manufactured from grade 304 stainless steel.
Behaviour in relation to fire – Non combustible (as defined in the national Building Regulations).
Durability – Excellent corrosion resistance and a service life of not less than 60 years.
Specification – Available for specification on the NBS Source platform.
