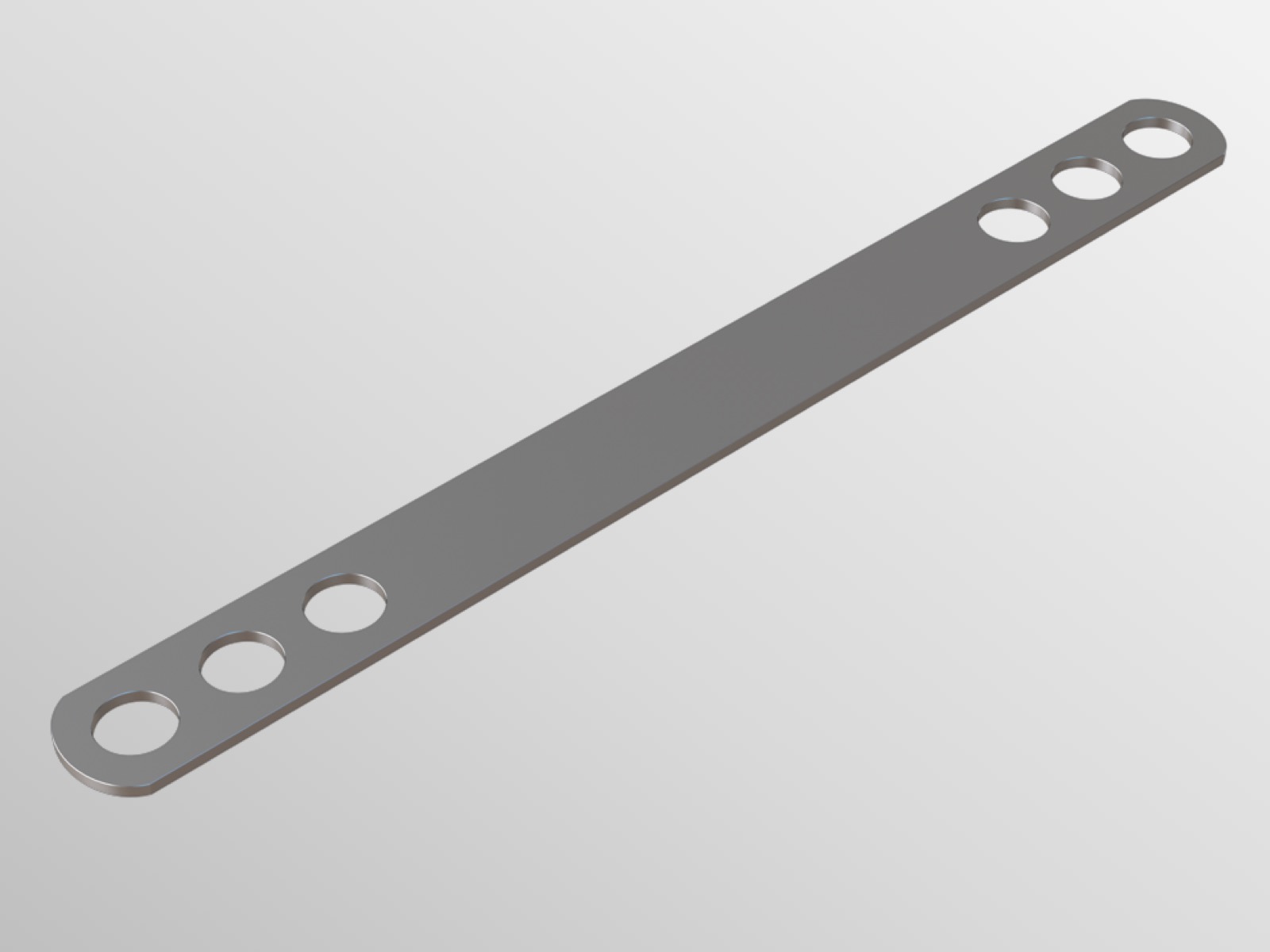

VS4 Heavy Duty Flat Safety Ties

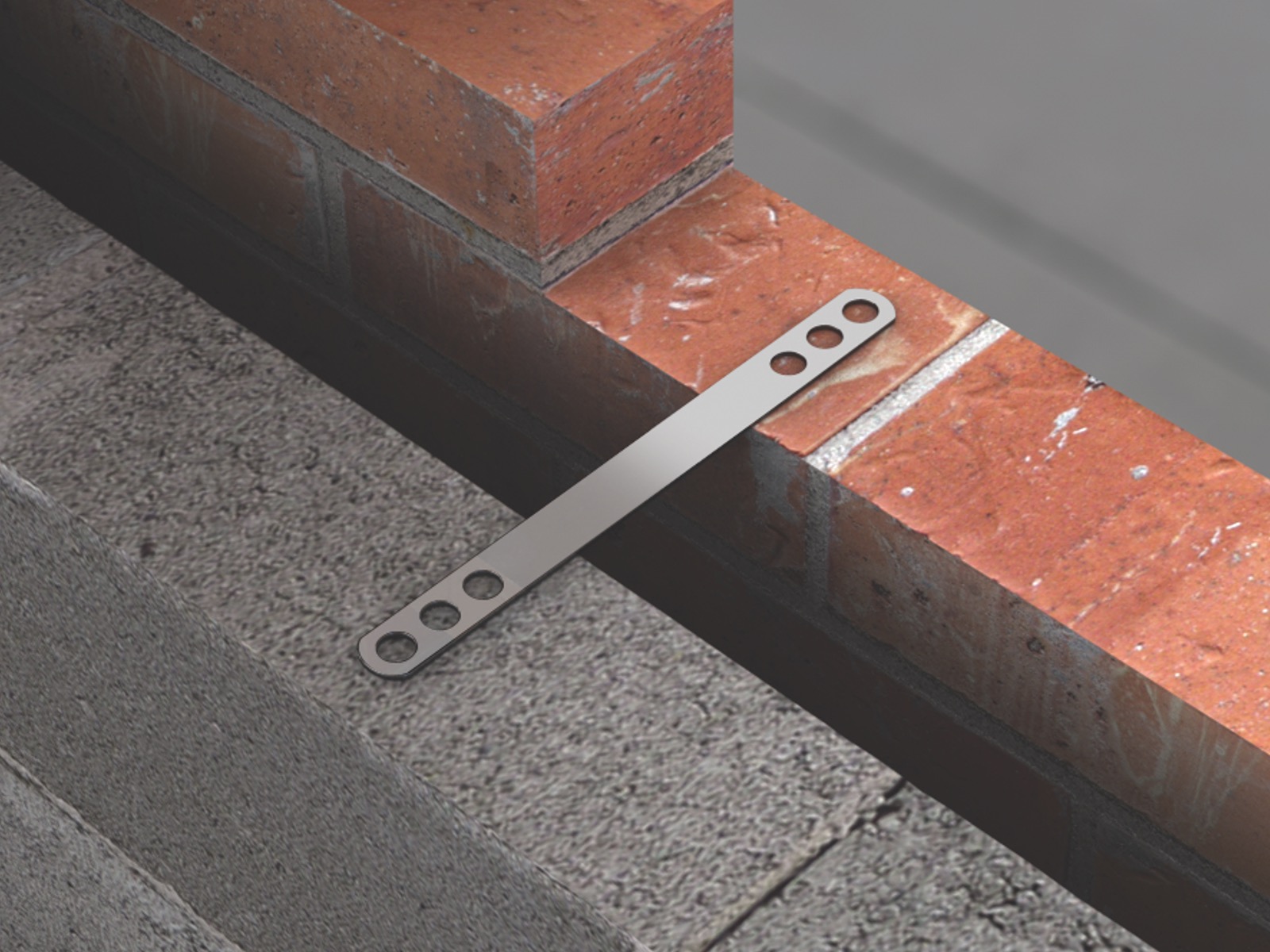

A heavy-duty wall tie suitable for most buildings in the UK of any height, with cavities up to 150mm. Used for collar jointed walls, in full fill cavities or where the prevention of moisture travelling across the cavity is not an issue.  (Type 1 Wall Tie).

Downloads

Datasheet
Technical Drawning
Code Size Cavity Units
VS4-300-STST 300mm 126-150mm 200 Box
  • Application - A heavy-duty wall tie suitable for most building sizes and types. These ties are rigid and should not be specified where large differential movements are expected or low strength masonry units are in use. They are suitable for buildings of any height and most UK locations.
  • Design – Used in full fill cavities or where the prevention of moisture travelling across the cavity is not an issue. Also for collar jointed walls.
  • Material – Manufactured from grade 304 stainless steel.
  • Behaviour in relation to fire – Non combustible (as defined in the national Building Regulations).
  • Durability – Excellent corrosion resistance and a service life of not less than 60 years.
  • Compliance – Tested as Type B (sound) and as Type 1 (strength) to BS EN 845-1.
  • Specification – Available for specification on the NBS Source platform.
