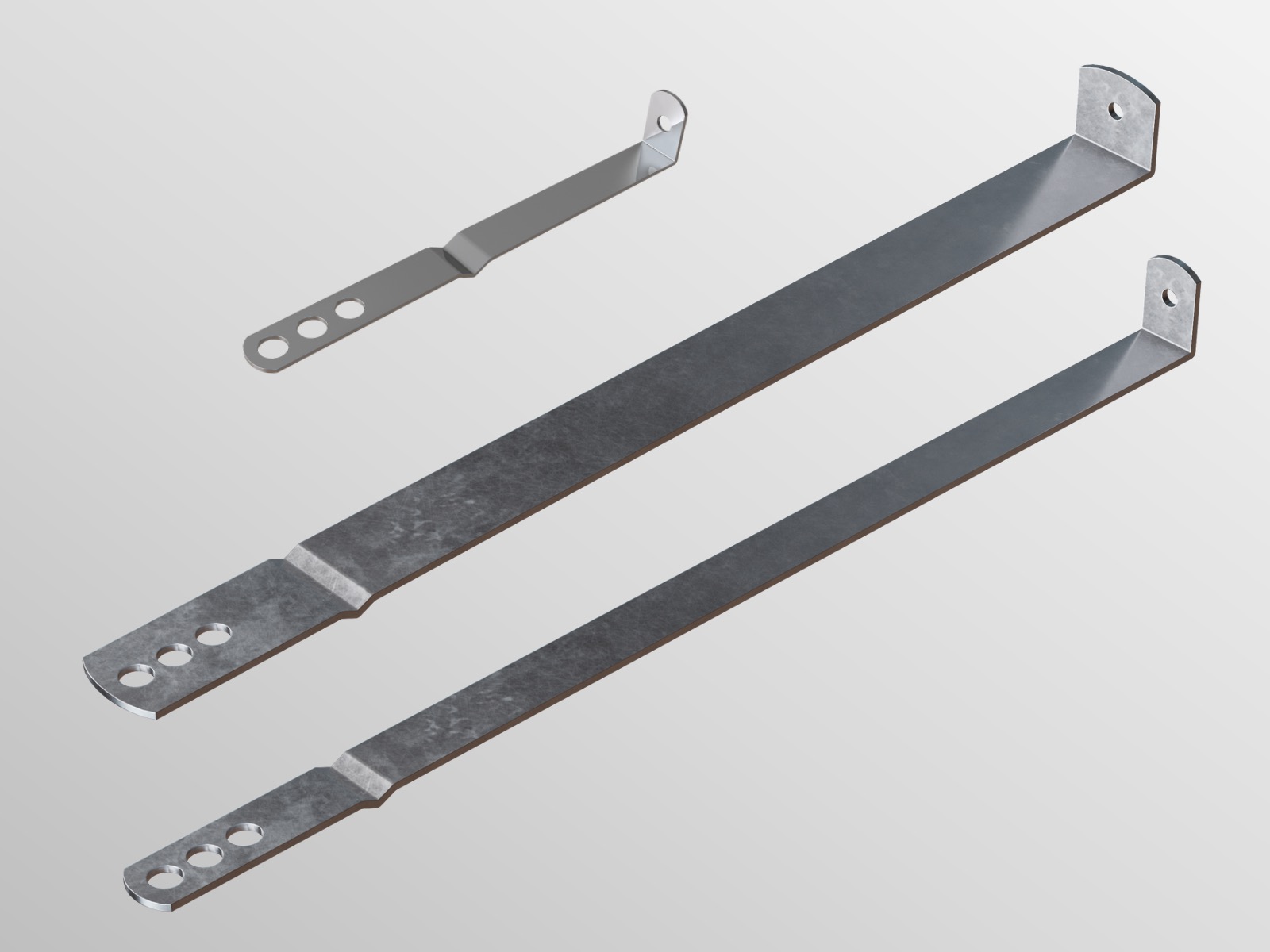

VE7D Frame Cramp with Drip

Frame cramp supplied with a drip to prevent moisture crossing the cavity. Drip position 90mm from safety end as standard.

Downloads

Datasheet
Technical Drawning
Code Size Units DOP
VE7D-125-STST 125mm Projection 250 Box
VE7D-150-STST 150mm Projection 250 Box
VE7D-175-STST 175mm Projection 250 Box
VE7D-200-STST 200mm Projection 250 Box
VE7D-225-STST 225mm Projection 200 Box
VE7D-250-STST 250mm Projection 200 Box
VE7D-275-STST 275mm Projection 200 Box
VE7D-300-STST 300mm Projection 200 Box
  • Design – Frame cramp supplied with a drip to prevent moisture crossing the cavity. Drip position 90mm from safety end as standard.
  • Material – Manufactured from  grade 304 stainless steel.
  • Behaviour in relation to fire – Non combustible (as defined in the national Building Regulations).
  • Durability – Excellent corrosion resistance and a service life of not less than 60 years.
  • Specification – Available for specification on the NBS Source platform.
