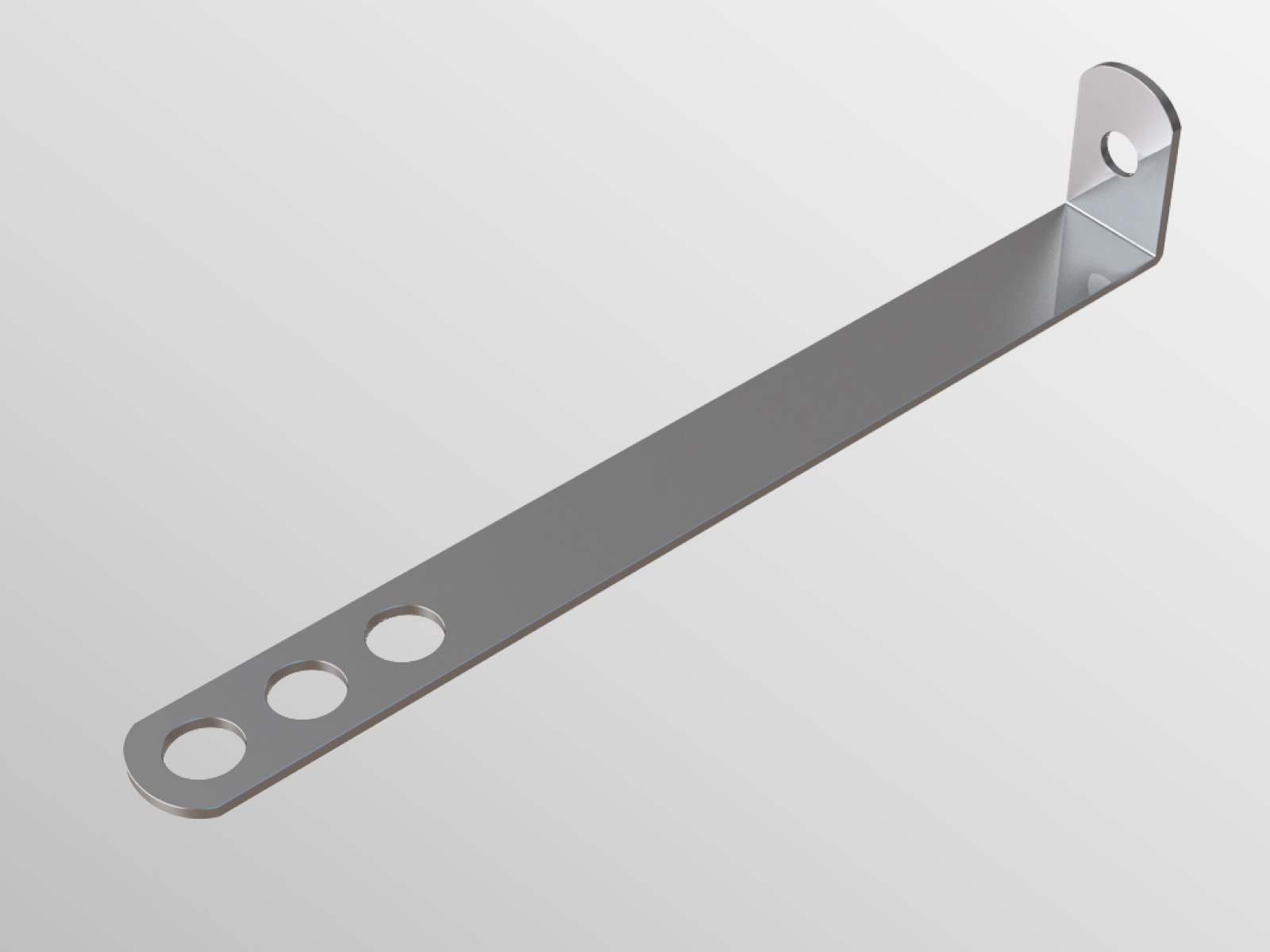

VE7 Frame Cramp

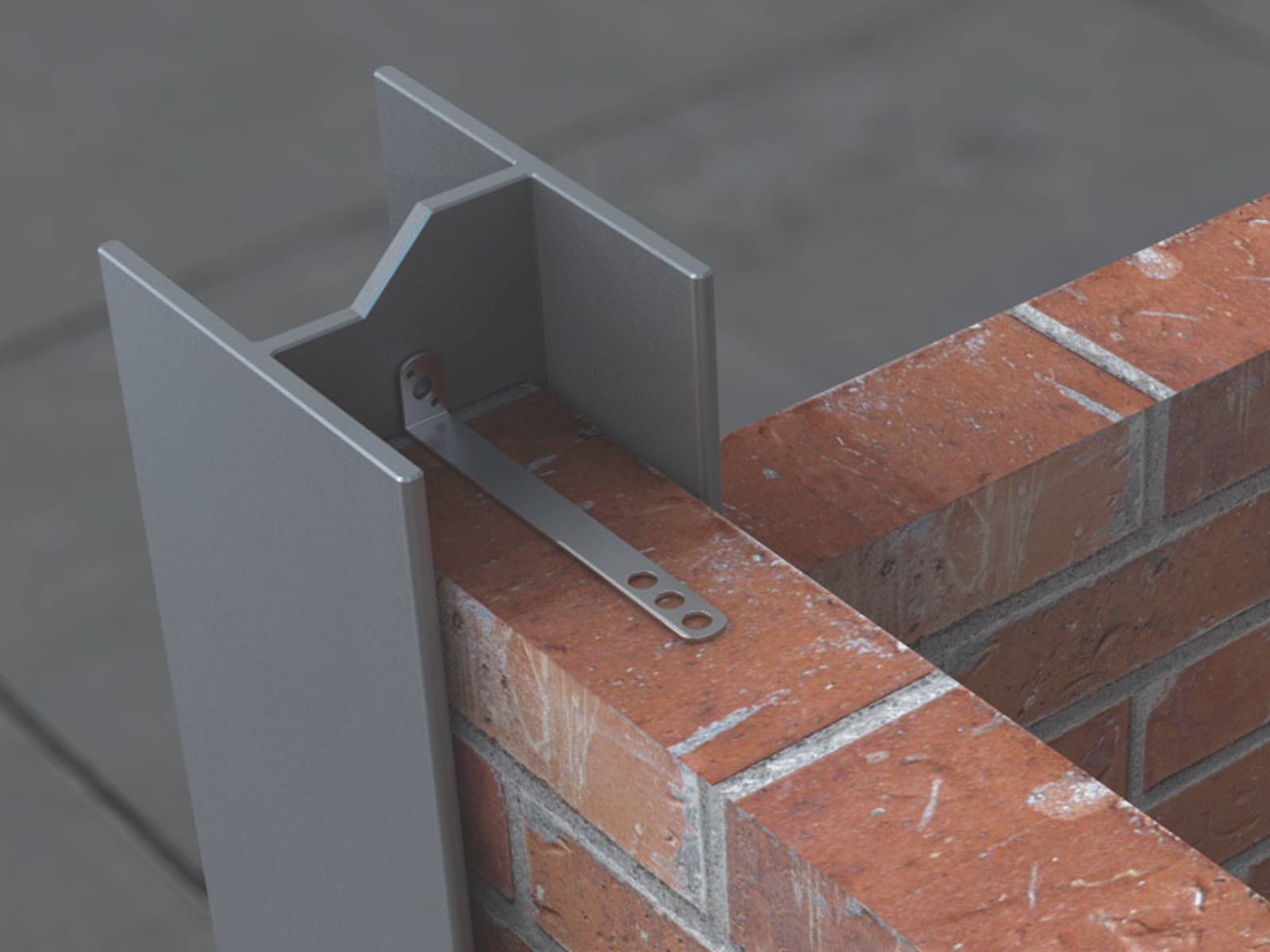

Frame cramp (supplied in stainless or galvanised steel) for restraining masonry to new or existing structures and for building in non-structural elements (frames etc).

Downloads

Datasheet
Technical Drawning
DOP
Code Size Units DOP
VE7-250-G.MS* 250mm Projection 200 Box
VE7-275-STST 275mm Projection 200 Box
VE7-300-STST 300mm Projection 200 Box
VE7-100-STST 100mm Projection 250 Box
VE7-150-STST 150mm Projection 250 Box
VE7-200-STST 200mm Projection 250 Box
VE7-075-STST 75mm Projection 250 Box
VE7-125-STST 125mm Projection 250 Box
VE7-175-STST 175mm Projection 250 Box
VE7-225-STST 225mm Projection 200 Box

STST=304 Stainless Steel

  • Design – Frame cramp (supplied in stainless or galvanised steel) for restraining masonry to new or existing structures and for building in non-structural elements (frames etc).
  • Material – Manufactured from  grade 304 stainless steel.
  • Behaviour in relation to fire – Non combustible (as defined in the national Building Regulations).
  • Durability – Excellent corrosion resistance and a service life of not less than 60 years.
  • Specification – Available for specification on the NBS Source platform.

*Also available as G.MS (Galvanised), please contact us for performance characteristics.
