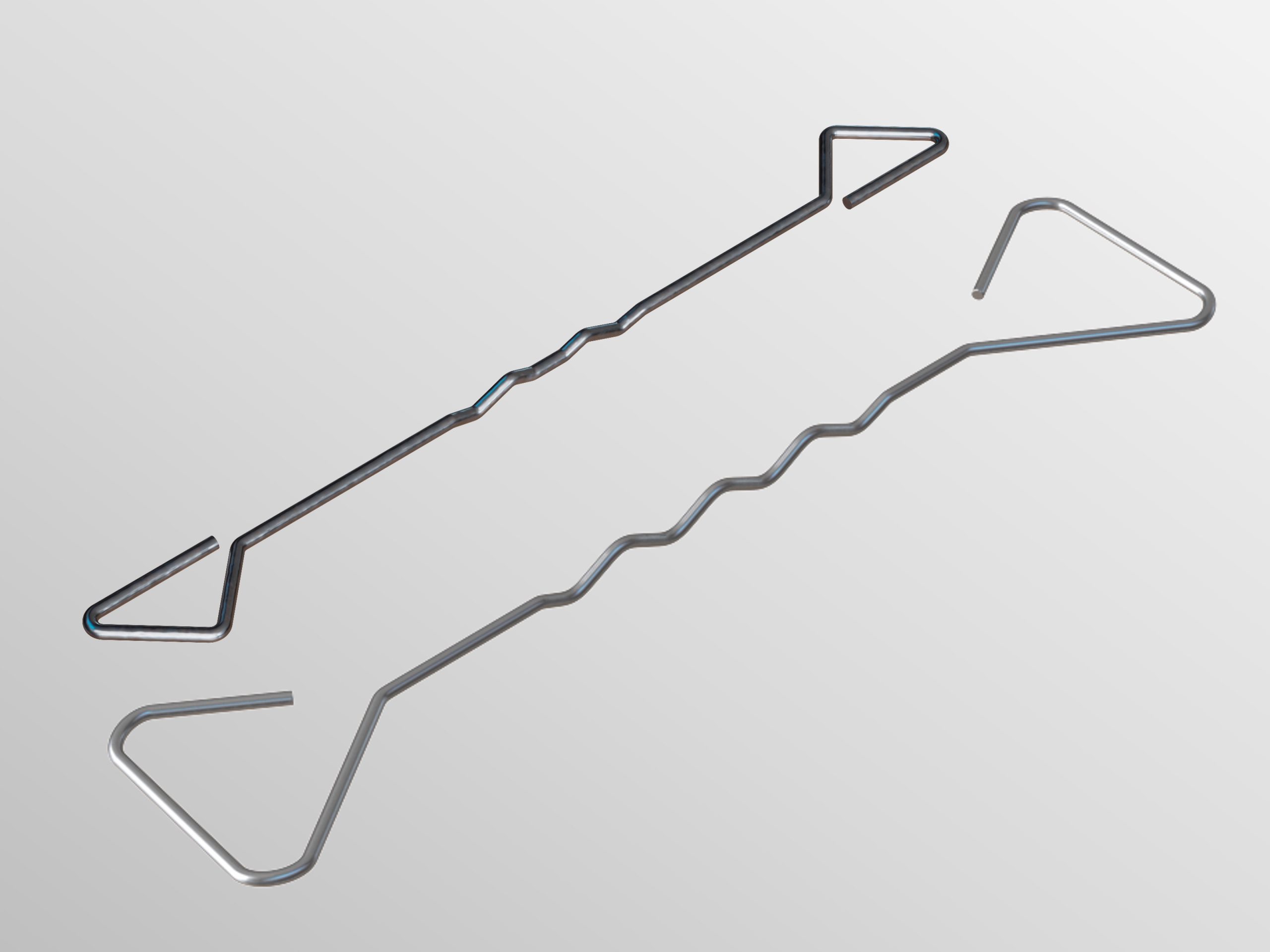

VE2 General Purpose Wall Ties

General-purpose wall tie used in small commercial buildings and domestic dwellings. Suitable for buildings with a maximum height of 15m and a cavity width of 101-150mm.  (Type 2 Wall Tie)

Downloads

Datasheet
Technical Drawning
Code Size Cavity Units DOP
VE2-250-STST 250mm 101-125mm 250 Bundle
VE2-275-STST 275mm 126-150mm 250 Bundle
  • BBA Approved general purpose wall ties (Agrément Certificate: 17/5462).(Applies to the VE2-275 only)
  • Application - A general-purpose wall tie for applications such as small commercial buildings and domestic properties. They are suitable for buildings with a maximum height if 15m and for flat sites where the basic wind speed is up to 31m/s and altitude is not greater than 150m above sea level.
  • Design - Multidrip feature to prevent moisture travelling across the cavity, it can be installed either way up. There are two end styles with the VE2-275 having the flat ends
  • Material - Manufactured from grade 304 stainless steel
  • Behaviour in relation to fire - non combustible (as defined in the national Building Regulations)
  • Durability - excellent corrosion resistance and a service life of not less than 60 years
  • Thermal performance - In situations where thermal losses through ties need to be taken into account, the products will adequately resist thermal transmittance through a wall cavity
  • Compliance - Tested as Type B (sound) and as Type 2 (strength) to BS EN 845-1
  • Specification – Available for specification on the NBS Source platform.
