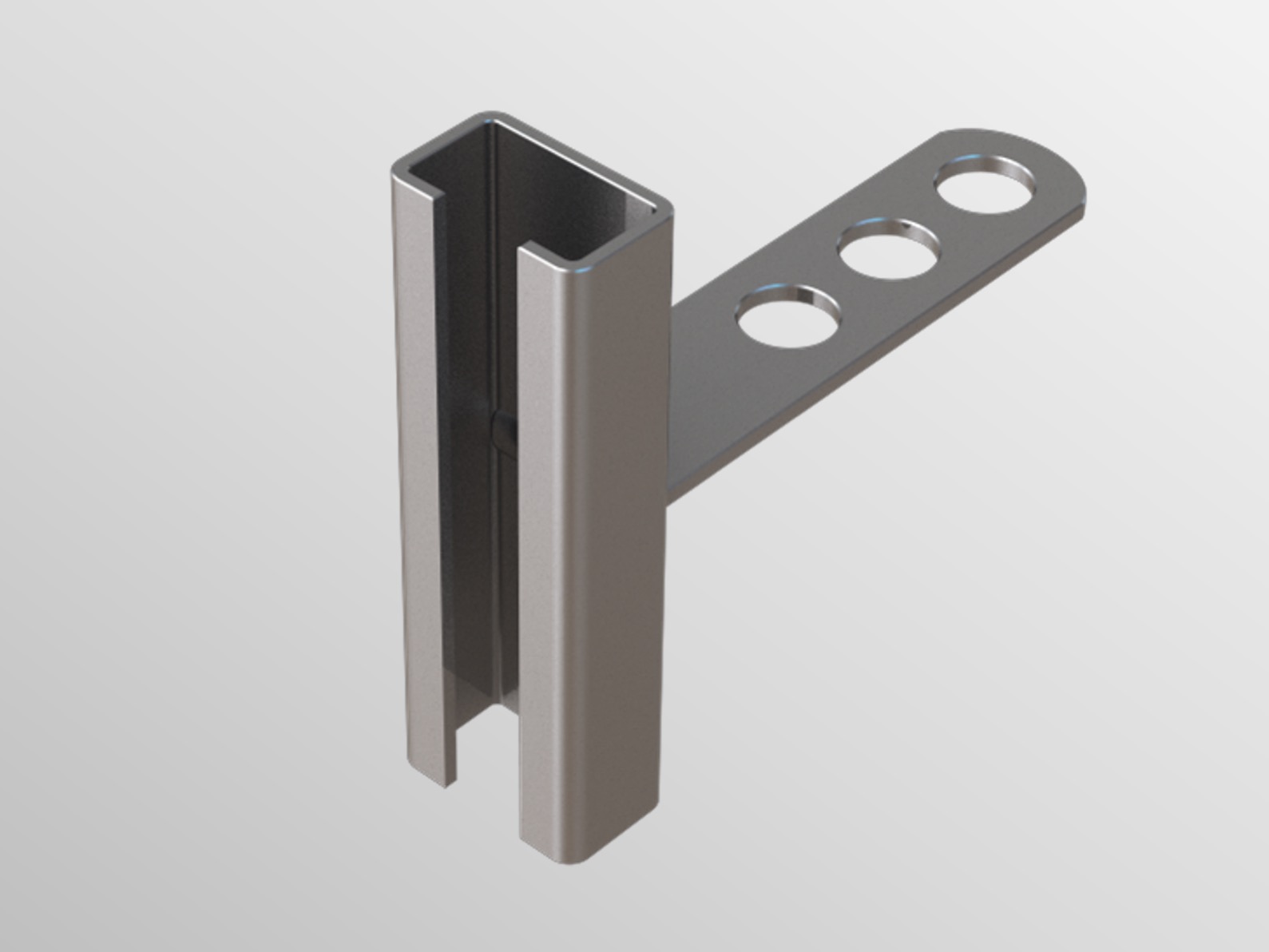

V60T 28/15 Tanged Back Channel

28/15 tanged back channel for casting into concrete or building into brick/blockwork. Polystyrene infill available upon request. Used in conjunction with ties to restrain brickwork.

Downloads

Datasheet
Technical Drawning
Code Size Units
V60T-100-STST 100mm 25 Box
V60T-150-STST 150mm 25 Box
V60T-3-MET-SS 3000mm 10 Bundle
  • Design28/15 tanged back channel for casting into concrete or building into brick/blockwork. Polystyrene infill available upon request. Used in conjunction with ties to restrain brickwork.
  • Material – Manufactured from grade 304 stainless steel.
  • Behaviour in relation to fire – Non combustible (as defined in the national Building Regulations).
  • Durability – Excellent corrosion resistance and a service life of not less than 60 years.
  • Specification – Available for specification on the NBS Source platform.
