MTS Mono Truss Shoe

Mono truss shoe is designed for the support of a short span, mono or in-fill truss where the lower weight loadings are required over a standard girder truss shoe.

Downloads

Datasheet
DOP

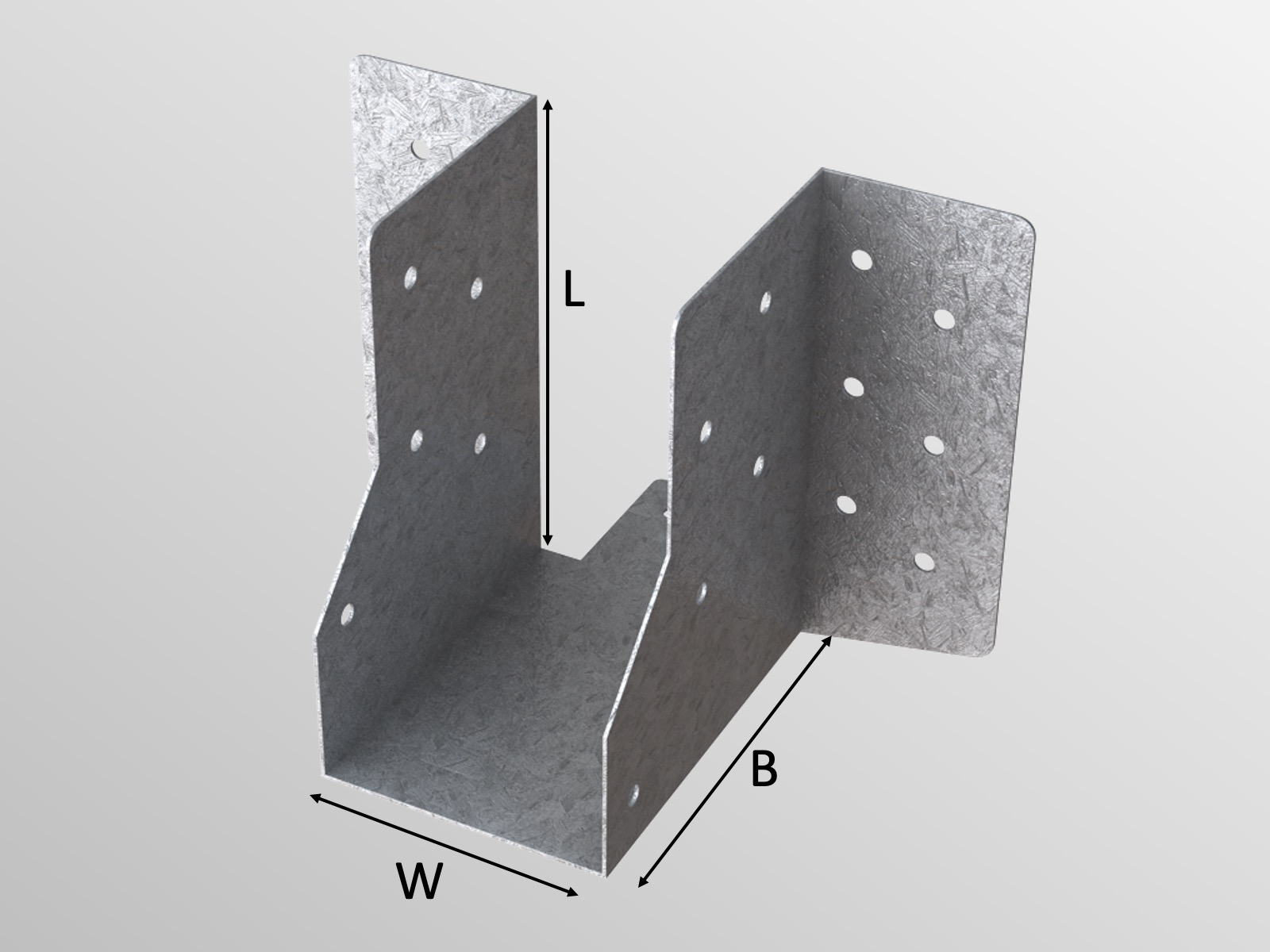

Code Size Units
MTS/500/44 W 44 x L 86 x B 75mm 100 Box
MTS/500/47 W 47 x L 85 x B 75mm 100 Box
MTS/500/50 W 50 x L 84 x B 75mm 100 Box
MTS/500/38 W 38 x L 90 x B 75mm 100 Box

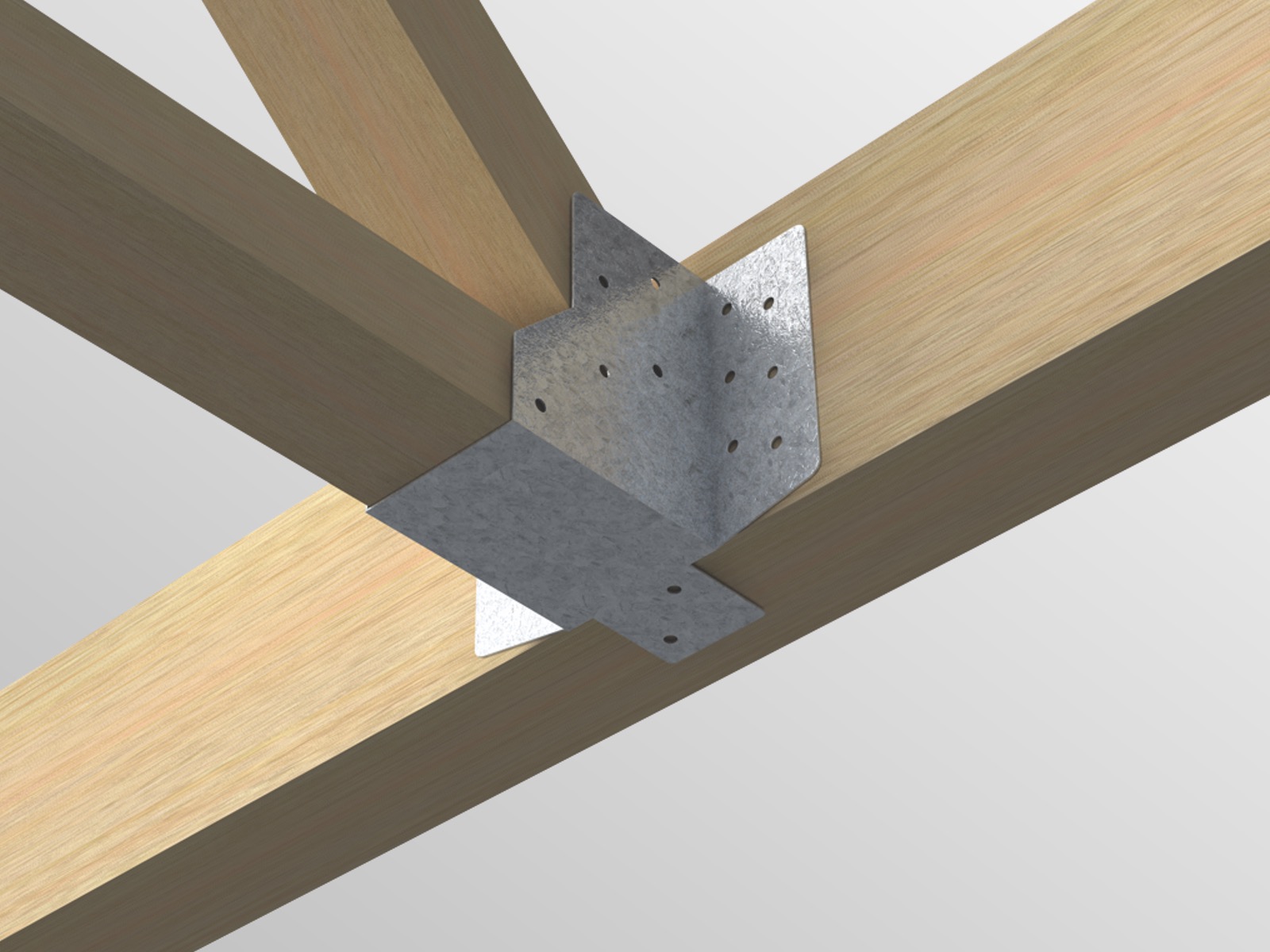

Designed for use in a mono / short span / infill truss to girder connection in a low load situation.

  • Material - Produced from 0.9mm thick galvanised steel to BS EN 10346:2009 +G275 as standard or stainless steel to order.
  • Fixing - Fix using either Type A or Type B fixings in all pre-punched holes:
    • Type A, 30mm x 3.75mm Sheradised Square Twist Nails usually supplied loose for manual fixing.
    • Type B, 35mm x 3.75mm Sheradised Square Twist Nails usually collated for nail gun fixing.
