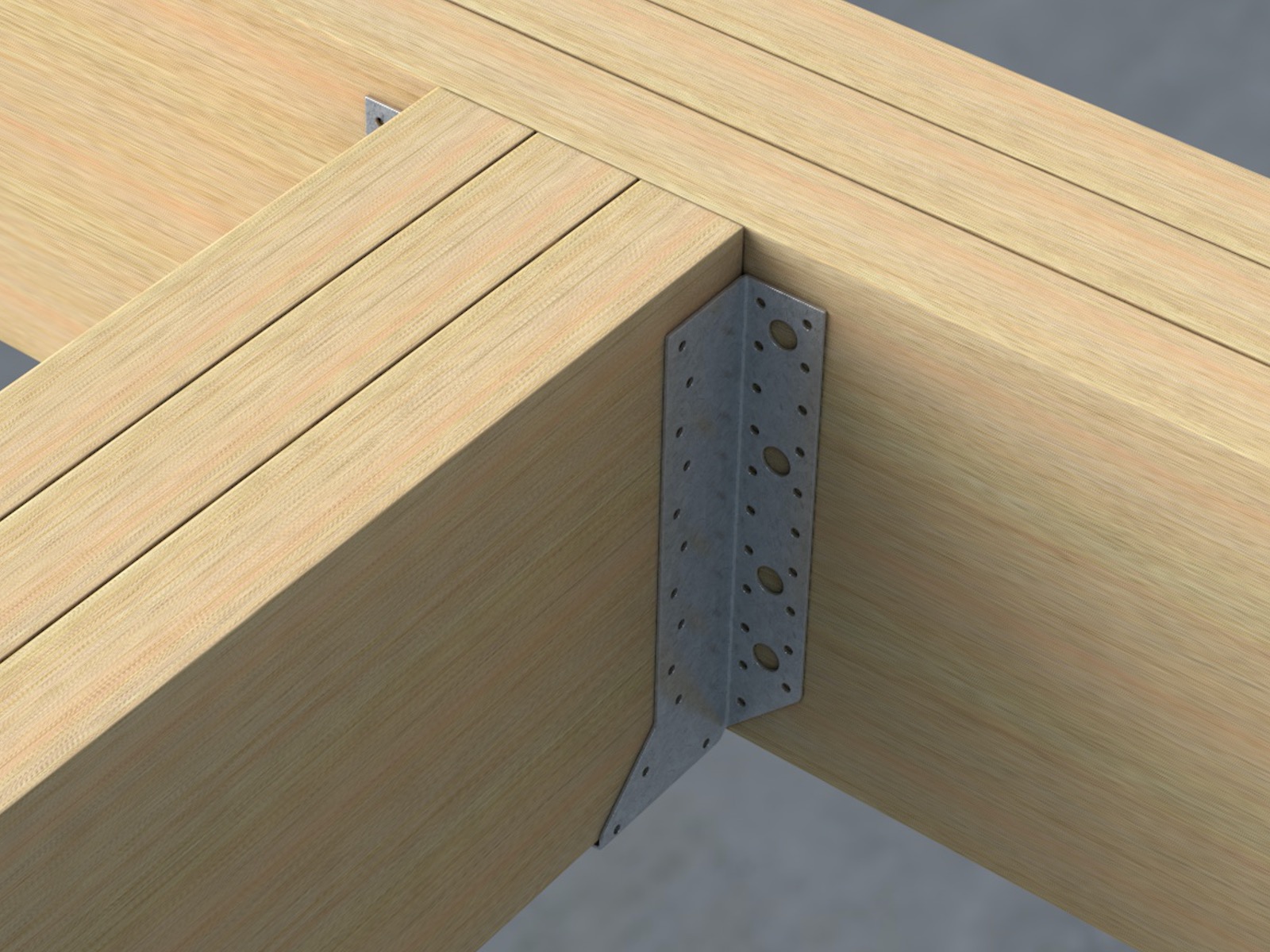

For use in heavy duty applications such as multiple truss units, main trimmer joists, purlin to beam connections or similar situations where unusually heavy loads occur. Also available as MTH/CF/620 with faces plates folded inwards for concealed fixings.

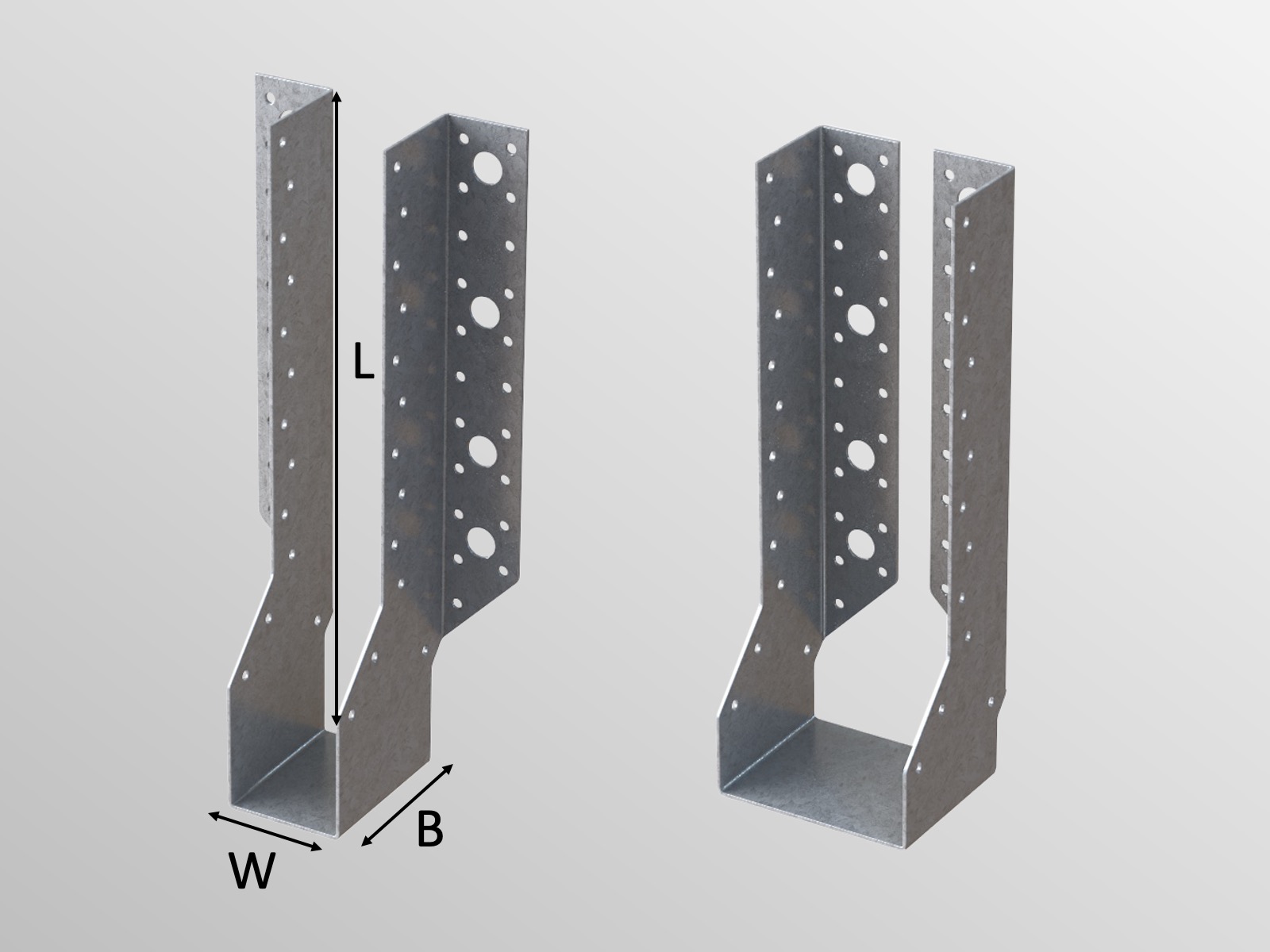

| Code | Size | Units |
|---|---|---|
| MTH/620/44 | W 44 x L 290 x B 75mm | 25 Box |
| MTH/620/47 | W 47 x L 288 x B 75mm | 25 Box |
| MTH/620/50 | W 50 x L 287 x B 75mm | 25 Box |
| MTH/620/63 | W 63 x L 280 x B 75mm | 25 Box |
| MTH/620/75 | W 75 x L 274 x B 75mm | 25 Box |
| MTH/620/88 | W 88 x L 268 x B 75mm | 25 Box |
| MTH/620/91 | W 91 x L 266 x B 75mm | 25 Box |
| MTH/620/100* | W 100 x L 262 x B 75mm | 25 Box |
| MTH/620/125* | W 125 x L 249 x B 75mm | 25 Box |
| MTH/620/150* | W 150 x L 237 x B 75mm | 25 Box |
| MTH/620/38 | W 38 x L 293 x B 75mm | 25 Box |
*Available as MTH/CF/620 with face plates folded inwards for concealed fixings.
Special non-standard widths available to order.
For use in heavy duty applications such as multiple truss units, main trimmer joists, purlin to beam connections or similar situations where unusually heavy loads occur. Bolt hole to suit M12 fixing, nail holes 5mm diameter.
