MINI Mini Hangers (V82)

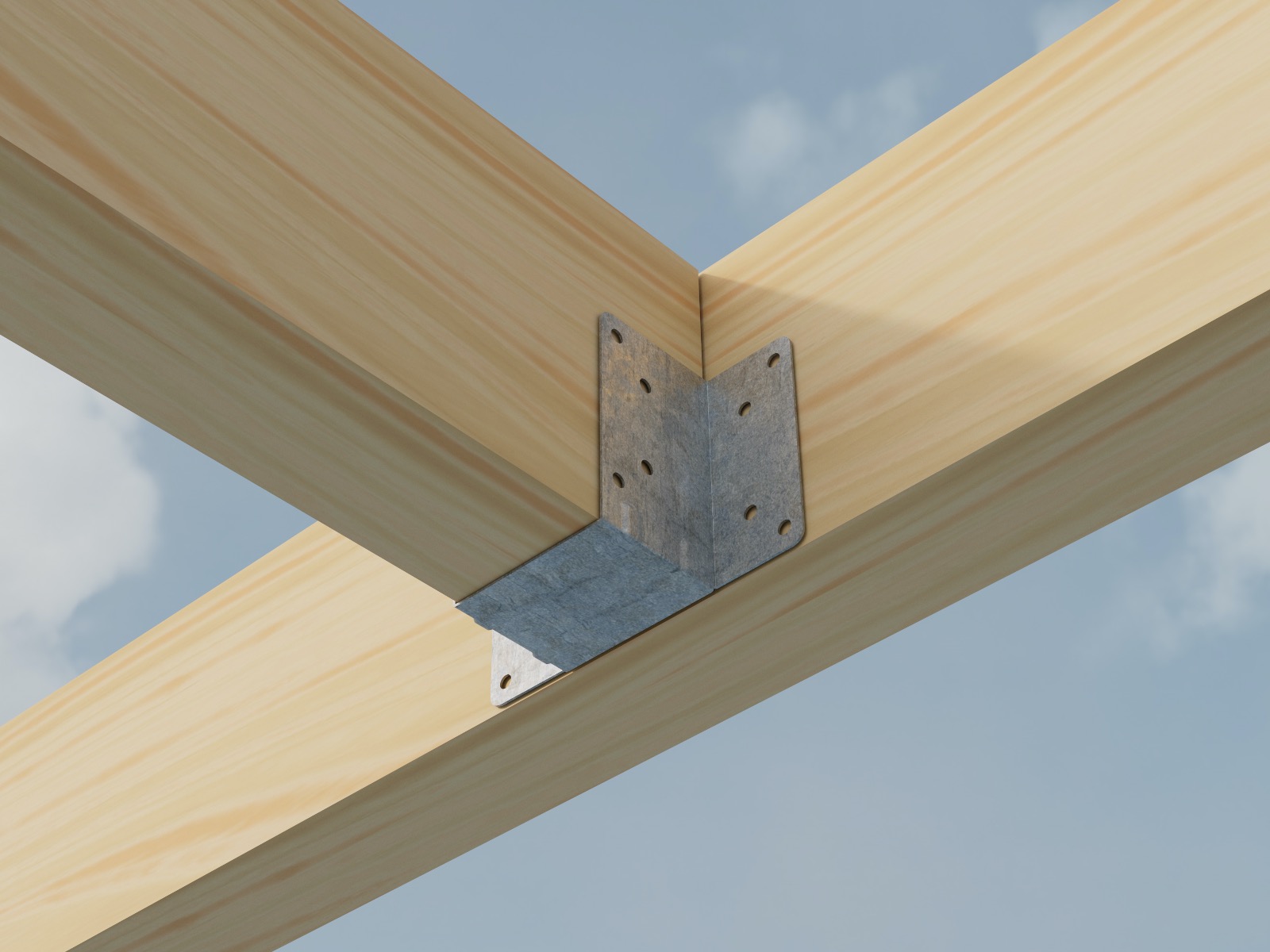

Support of short span joists, trap hatches and in-fill timbers in roof space. Designed for fast and economical light duty applications.

Downloads

Datasheet
DOP

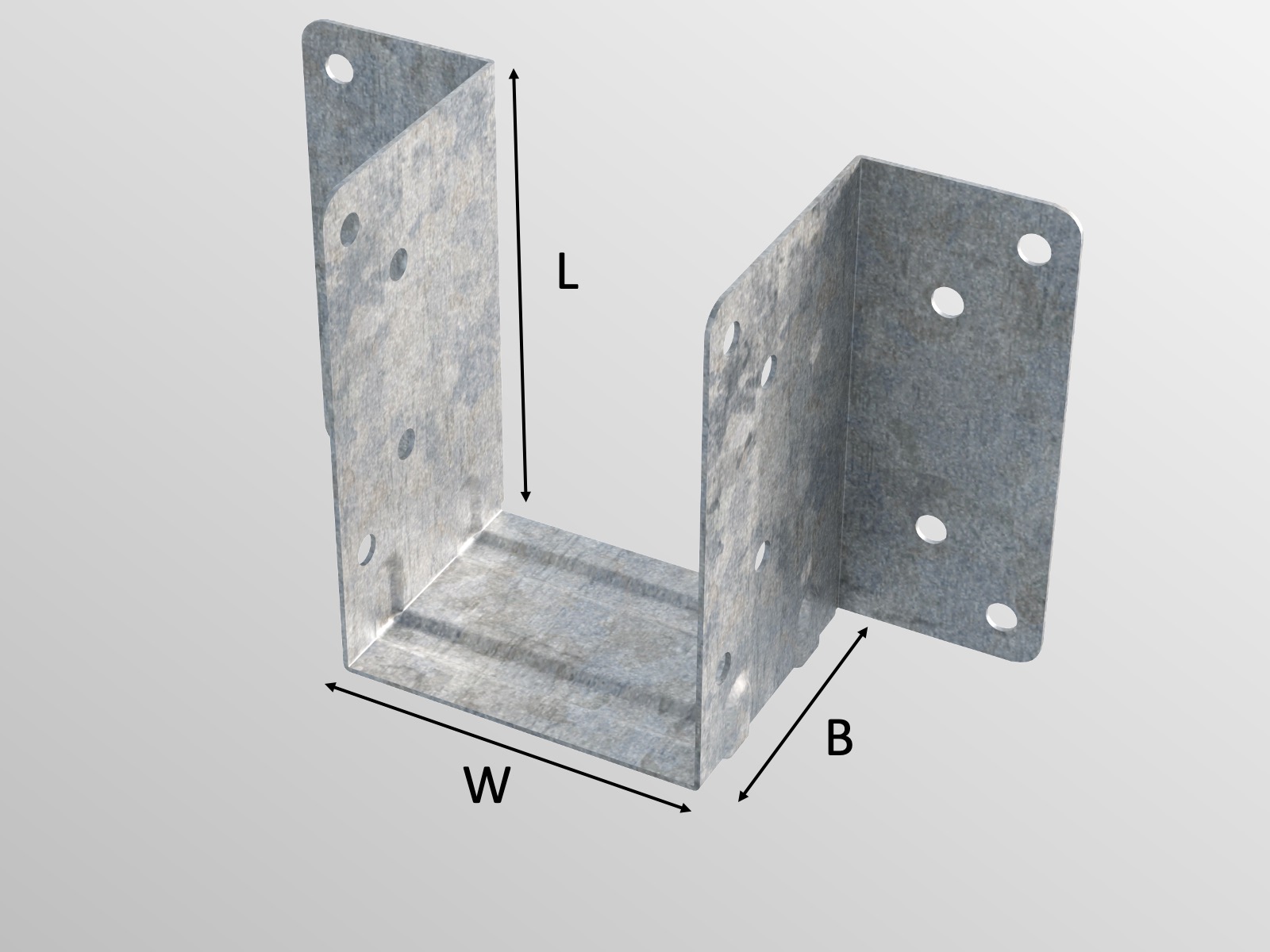

Code Size Units
MINI/38 W 38 x L 71 x B 40mm 250 Box
MINI/44 W 44 x L 68 x B 40mm 250 Box
MINI/47 W 47 x L 67 x B 40mm 250 Box
MINI/50 W 50 x L 65 x B 40mm 250 Box

Ideal for trimming around ceiling hatches and other similar light duty applications. Suitable for timber depth up to 100mm.

  • Material - Produced from 0.8mm thick  galvanised steel to BS EN 10346:2009 DX51D + G275 as standard, or stainless steel available to order.
  • Fixing - Fix using either Type A or Type B fixings in all pre-punched holes:
    • Type A, 30mm x 3.75mm Sheradised Square Twist Nails usually supplied loose for manual fixing.
    • Type B, 35mm x 3.75mm Sheradised Square Twist Nails usually collated for nail gun fixing.
