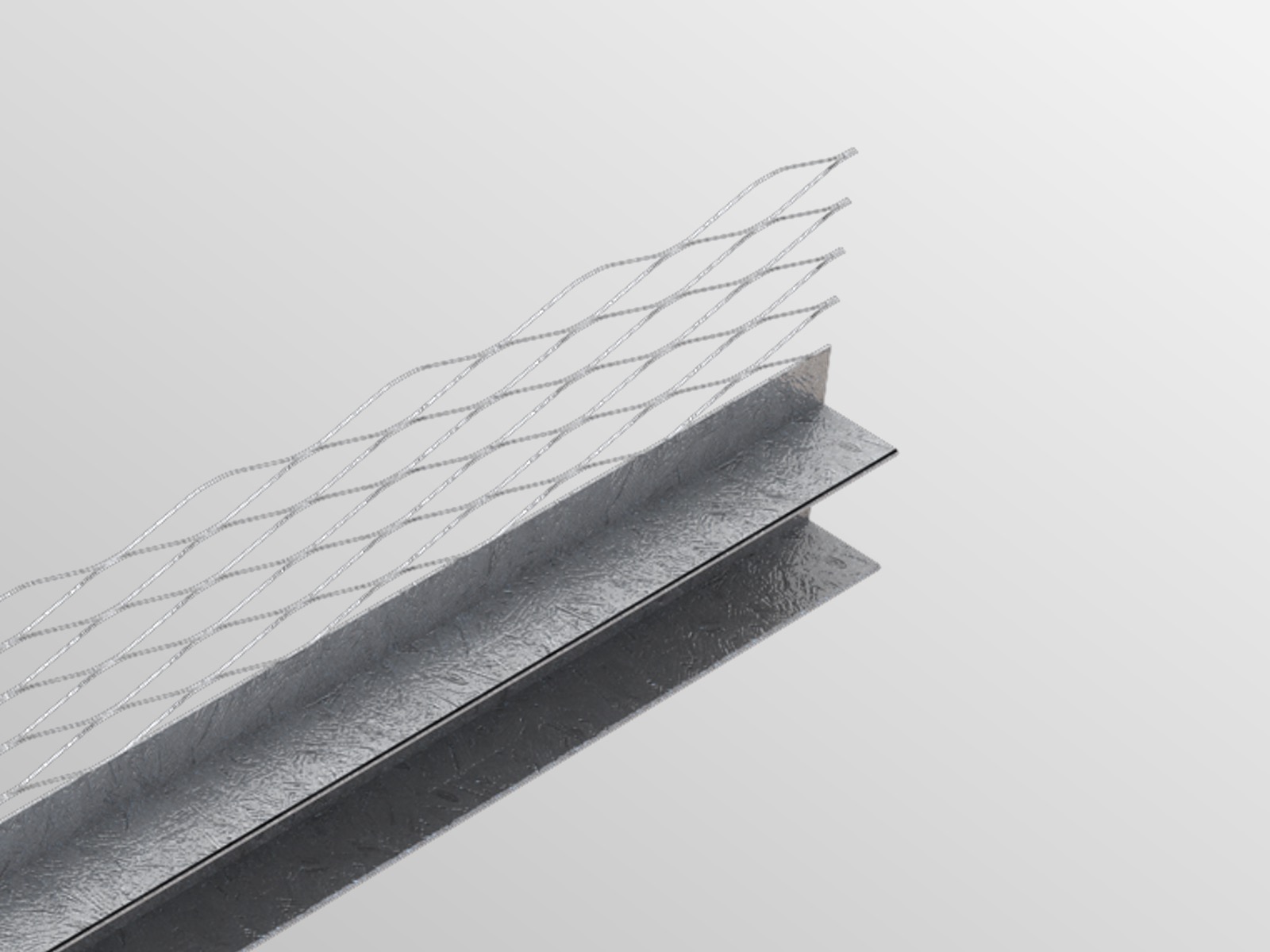

GARB Galvanised Architrave Bead

A range of beads produced to allow for decorative finishes - i.e. shadow lines and recesses around door and window frames etc. The bead can either be supplied as an engaging bead or abutting bead with various plaster depths available. Internal use only.

Downloads

Datasheet
Code Size Units
G10EABF30ENGAGING 3.0m x 10mm engaging (without flange) 50 Box
G13EABF30ENGAGING 3.0m x 13mm engaging (without flange) 50 Box
G10ABF30ABUTTING 3.0m x 10mm abutting (with flange) 50 Box
G13ABF30ABUTTING 3.0m x 13mm abutting (with flange) 50 Box
G25ABF30ABUTTING 3.0m x 20mm abutting (with flange) 50 Box

Beads can be cut to size as required using tin-snips and/or a hacksaw. The large diamond of the expanded metal wings provide a suitable key to prevent cracking. Avoid damage to bead and coating when trowelling.

  • Standard: BS EN13658-1:2005
  • Material: Galvanised mild steel DX51D+Z275 (275g/m2 zinc coating)
  • Material gauge: 0.4mm
  • Reaction to fire: Class A1

Goods to be stored and transported laying down and in dry conditions. Please dispose or recycle in accordance with waste management regulations.

COSHH & Health & Safety.

Contains no substances hazardous to health. The comparative rough surface finish and sharp edges of expanded metal requires care when handling manually, to avoid risk of cuts and abrasions gloves should be worn.
