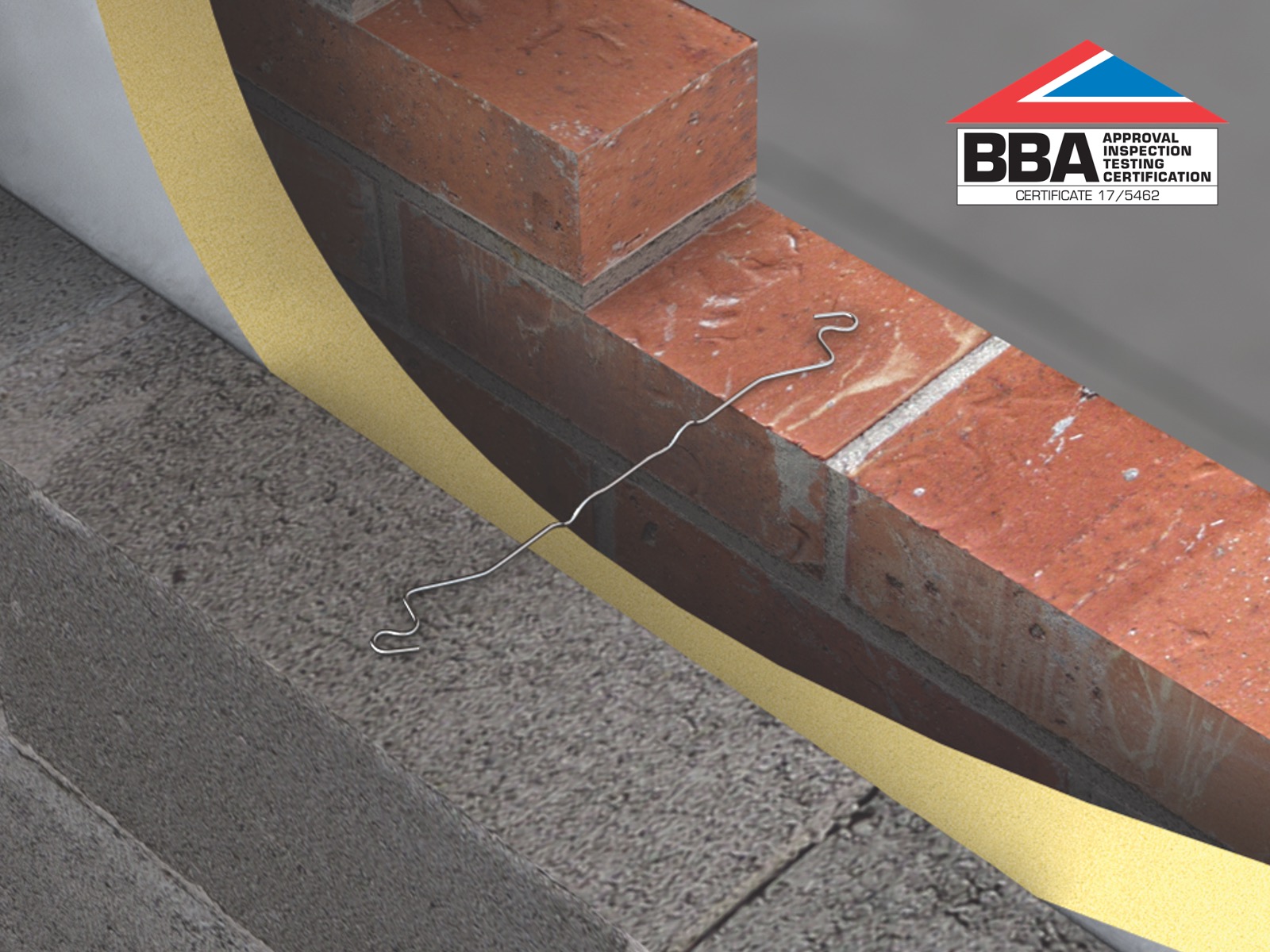

General-purpose wall tie used in small commercial buildings and domestic dwellings. Suitable for buildings with a maximum height of 15m and cavity widths from 50-125mm. (Type 2 Wall Tie)
Downloads
Datasheet
Technical Drawning
Code
Size
Cavity
Units
DOP
EN2-250-STST
250mm
101-125mm
250 Box
BBA Approved general purpose wall ties (Agrément Certificate: 17/5462).
Application – A general-purpose wall tie for applications such as small commercial buildings and domestic properties. They are suitable for buildings with a maximum height if 15m and for flat sites where the basic wind speed is up to 31m/s and altitude is not greater than 150m above sea level.
Design - Multidrip feature to prevent moisture travelling across the cavity, it can be installed either way up.
Material - Manufactured from grade 304 stainless steel.
Behaviour in relation to fire - Non combustible (as defined in the national Building Regulations).
Durability - Excellent corrosion resistance and a service life of not less than 60 years.
Thermal performance - In situations where thermal losses through ties need to be taken into account, the products will adequately resist thermal transmittance through a wall cavity.
Compliance - Tested as Type B (sound) and as Type 2 (strength) to BS EN 845-1.
Specification – Available for specification on the NBS Source platform.
