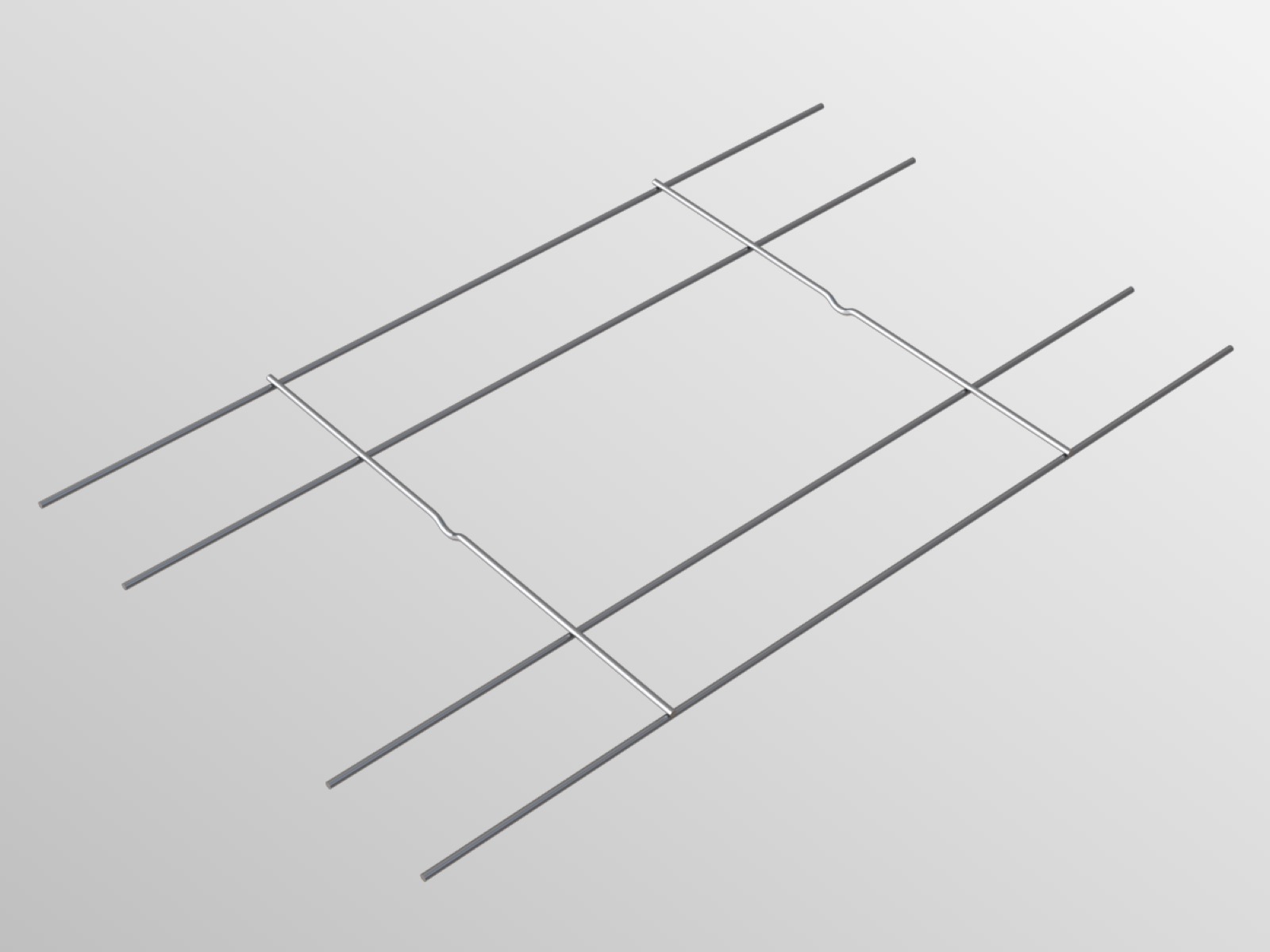

Double Vista Weld is a welded structural ladder type masonry reinforcement used to reinforce both leaves of a cavity wall. Manufactured with 3.5mm main longitudinal wires and 3.6mm cross wires (with a drip). Each length is 2700mm long and is available in numerous widths to suit individual design requirements.
Downloads
Datasheet
Technical Drawning
Code
Size
Units
DVW-200-STST
2700mm x 200mm
1
DVW-225-STST
2700mm x 225mm
1
DVW-250-STST
2700mm x 250mm
1
DVW-275-STST
2700mm x 275mm
1
DVW-300-STST
2700mm x 300mm
1

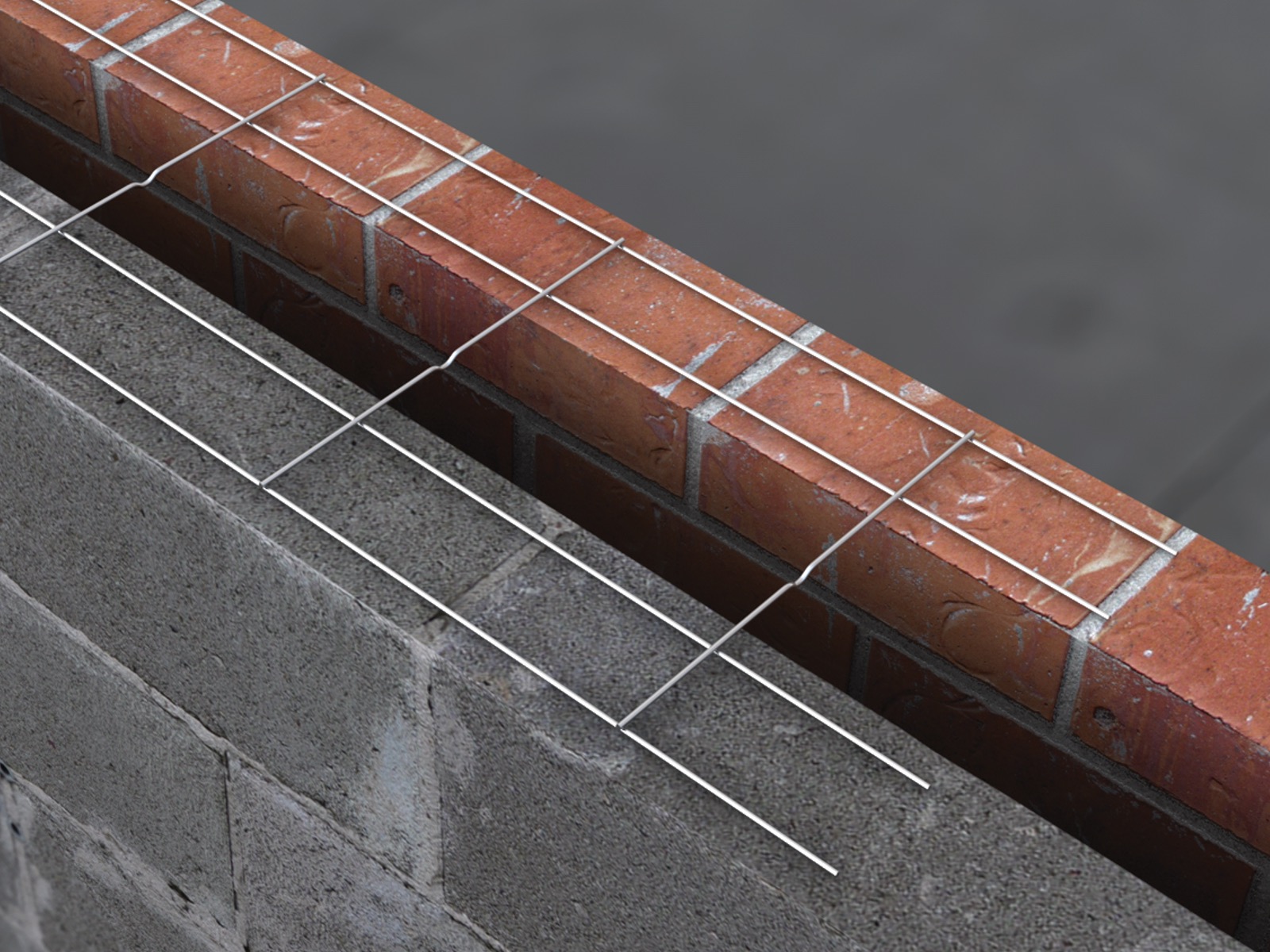

Design – Double Vista Weld is a welded structural ladder type masonry reinforcement used to reinforce both leaves of a cavity wall. Manufactured with 3.5mm main longitudinal wires with 3.6mm cross wires (with a drip). Each length is 2700mm long and is available in numerous widths to suit individual design requirements.
Material – Manufactured from grade 304 S15 stainless steel.
Behaviour in relation to fire – Non combustible (as defined in the national Building Regulations).
Durability – Excellent corrosion resistance and a service life of not less than 60 years.
Specification – Available for specification on the NBS Source platform.
