A medium duty hanger that is suitable for joist depths of up to 250mm.

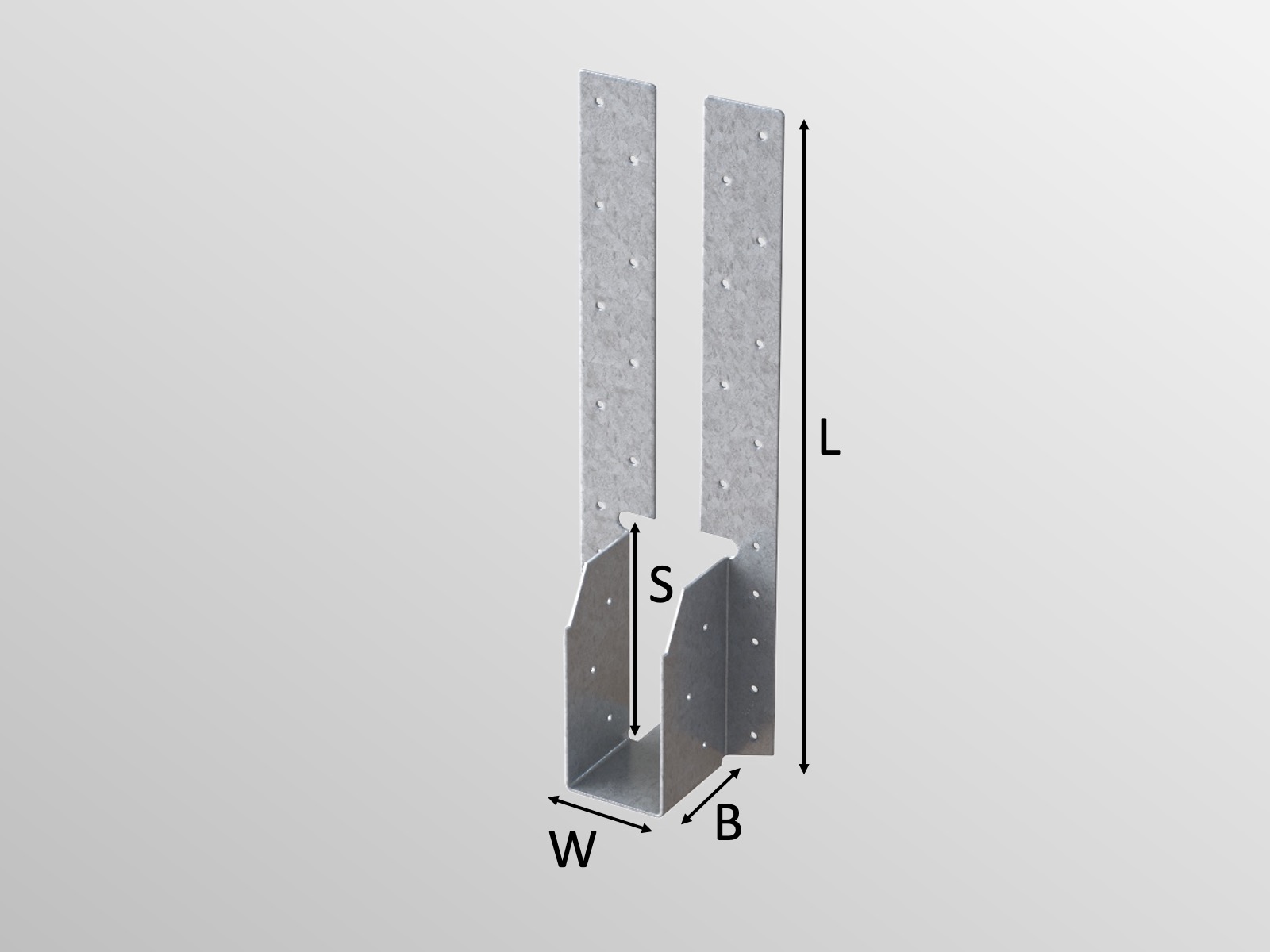

| Code | Size | Units |
|---|---|---|
| B340/91 | W 91 x L 340 x B 50 x S 110mm | 50 Box |
| B340/100 | W 100 x L 340 x B 50 x S 110mm | 50 Box |
| B340/125 | W 125 x L 340 x B 50 x S 110mm | 50 Box |
| B340/150 | W 150 x L 340 x B 50 x S 110mm | 50 Box |
| B340/38 | W 38 x L 340 x B 50 x S 110mm | 50 Box |
| B340/44 | W 44 x L 340 x B 50 x S 110mm | 50 Box |
| B340/47 | W 47 x L 340 x B 50 x S 110mm | 50 Box |
| B340/50 | W 50 x L 340 x B 50 x S 110mm | 50 Box |
| B340/63 | W 63 x L 340 x B 50 x S 110mm | 50 Box |
| B340/75 | W 75 x L 340 x B 50 x S 110mm | 50 Box |
| B340/88 | W 88 x L 340 x B 50 x S 110mm | 50 Box |

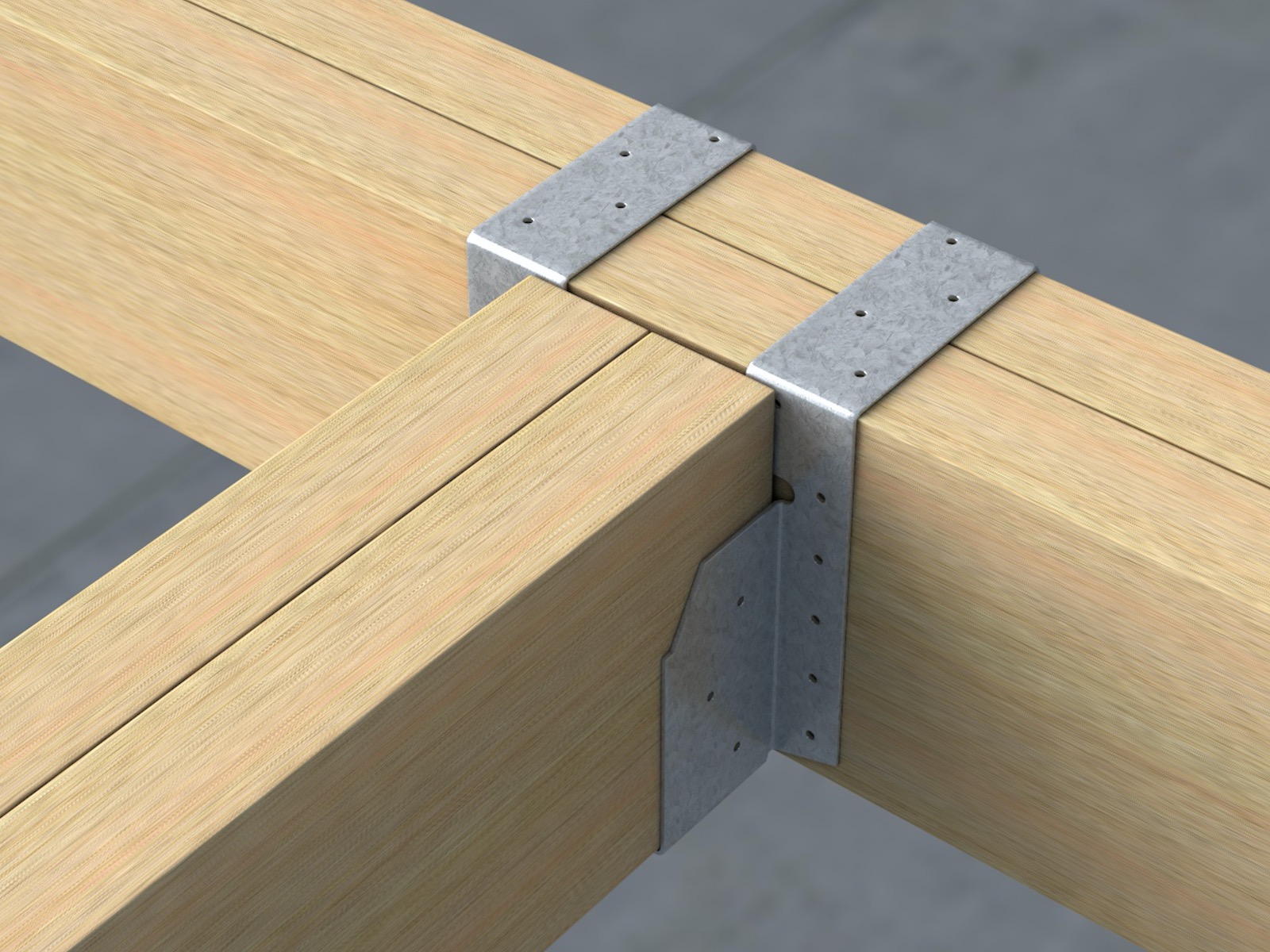

A medium duty joist hanger with 50mm wide legs, suitable for joist depths of up to 250mm. Design features a location tab on the base, to allow quick and accurate alignment of the hanger.
