A190 Light Duty Hanger (Short Leg) (V81-SL)

A190 Light Duty Hanger (Short Leg) (V81-SL)

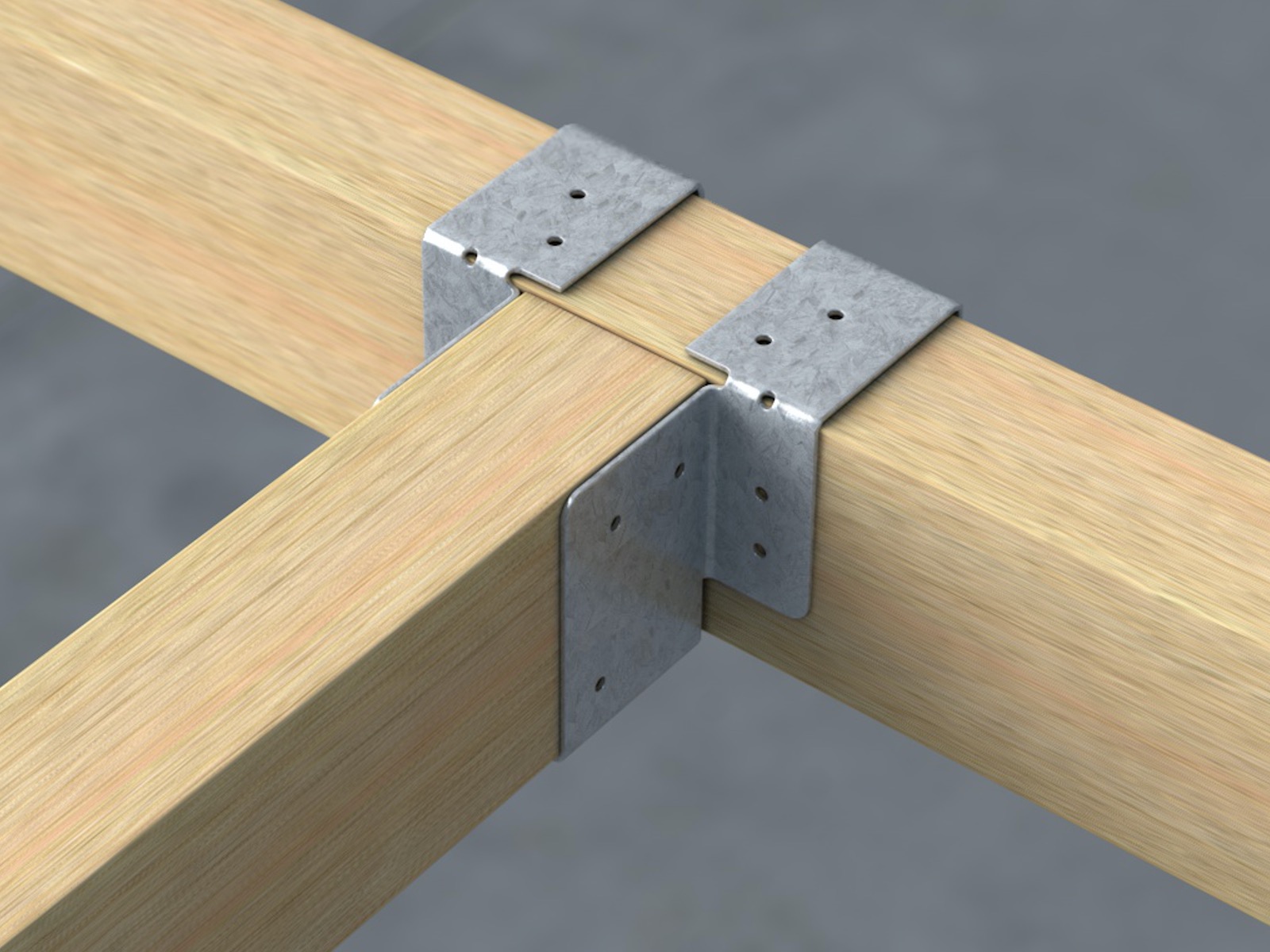

Short Leg Timber to Timber Hanger. A quick and safe method of joist trimming for light and medium applications such as supporting floor joists, trimming stair wells. They have increased hole centres to spread load over greater area.

Downloads

Datasheet

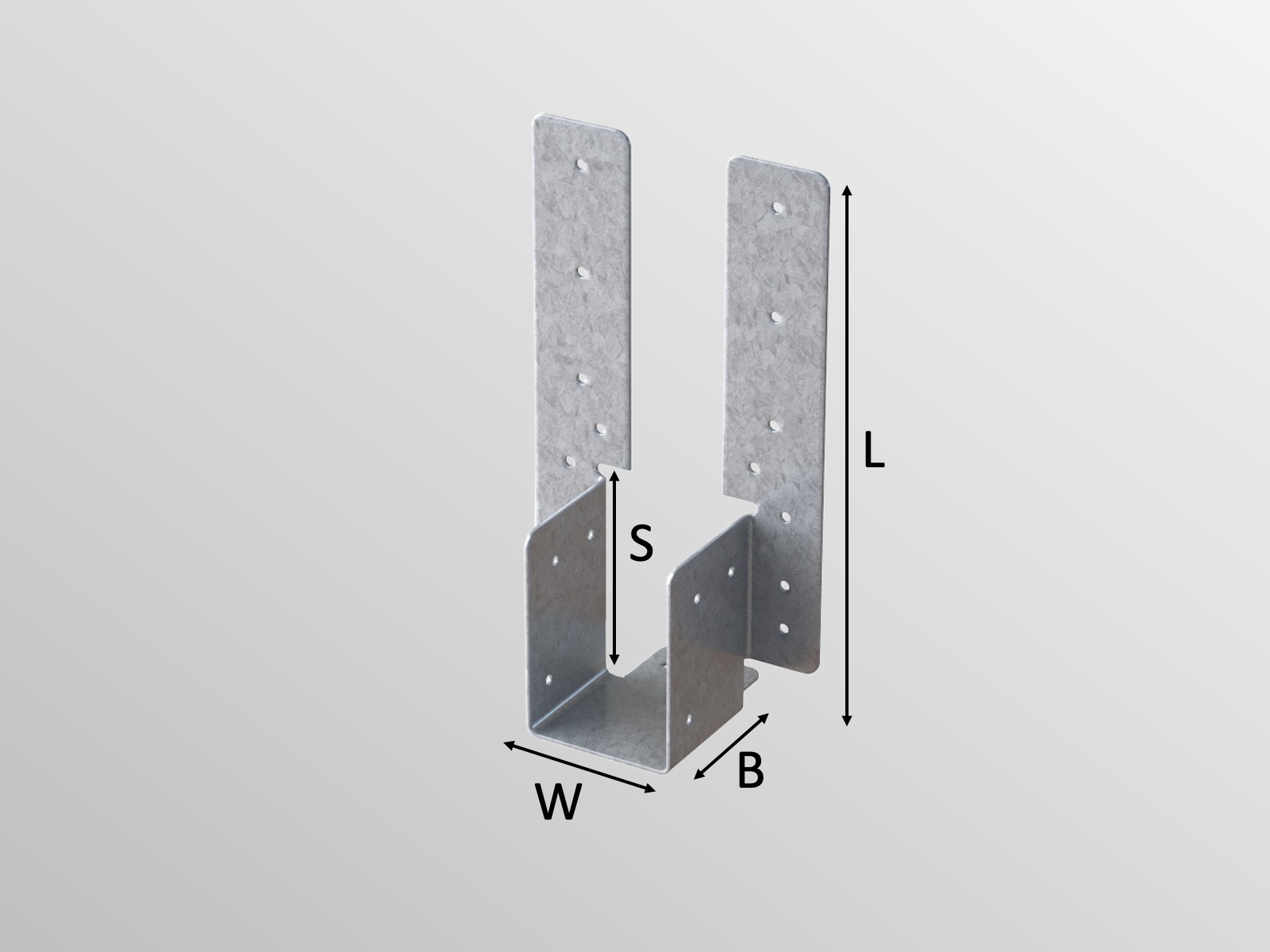

Code	Size	Units
A190/38	W 38 x L 190 x B 50 x S 71mm	100 Box
A190/47	W 47 x L 190 x B 50 x S 68mm	100 Box
A190/50	W 50 x L 190 x B 50 x S 65mm	100 Box

Code	W - L - B - S	UNITS
A190/38	38 x 190 x 50 x 71mm	100 box
A190/47	47 x 190 x 50 x 68mm	100 box
A190/50	50 x 190 x 50 x 65mm	100 box

Lightweight hanger suitable for joist depth up to 175mm.

Material - Produced from 0.9mm thick galvanised steel to BS EN 10346:2009 DX51D + G275 as standard, or stainless steel available to order.
Fixing - Galvanised hangers must be fixed using 30mm x 3.75mm sheradised square twisted nails in all pre-punched holes.
